SAM Medical
Slide. Click. Secure.

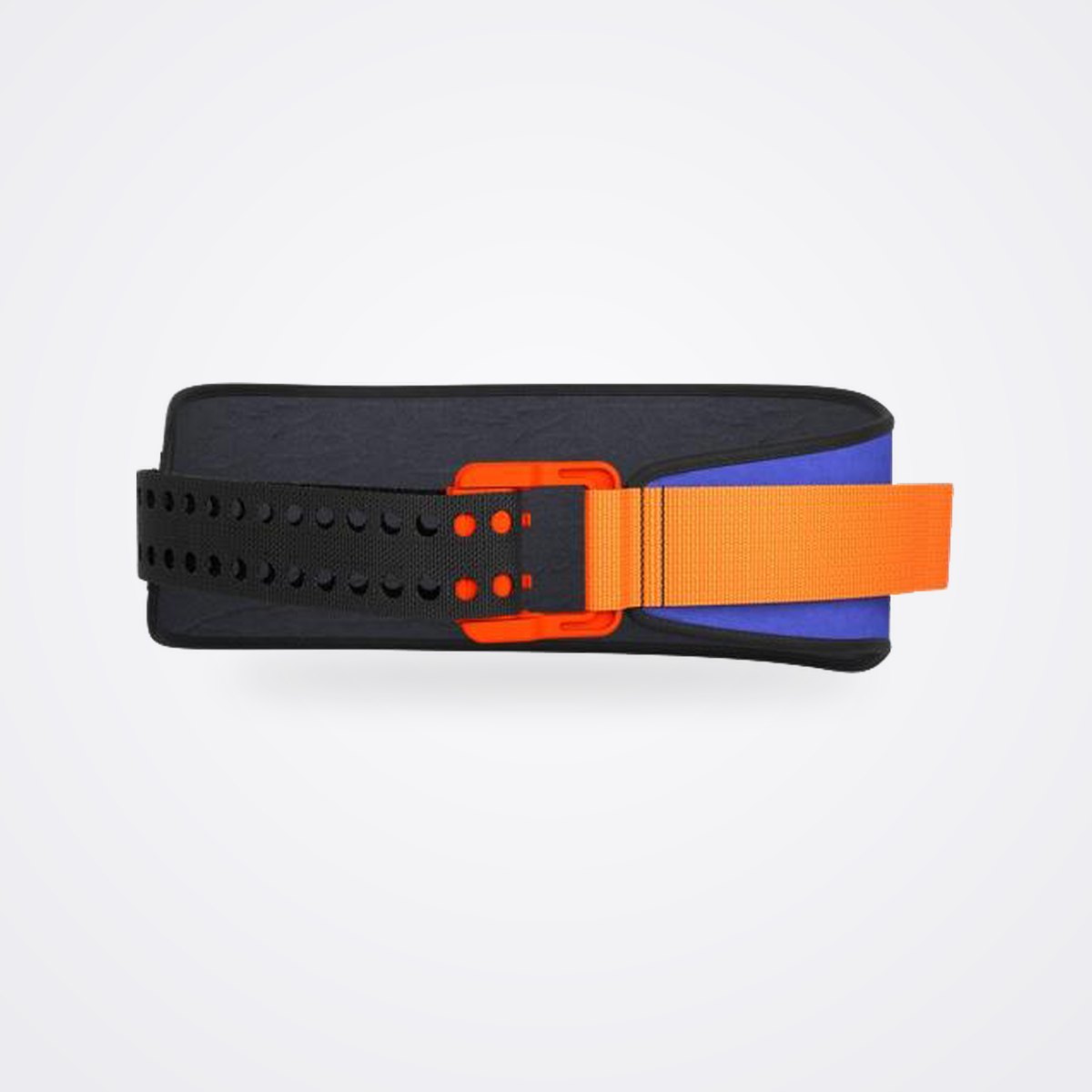

SAM Pelvic Sling II is a non-invasive circumferential pelvic belt intended to stabilise pelvic fractures during transport to definitive care. Its patented AutoStop buckle engages once about 150 N of circumferential pressure is reached, giving a tactile and audible click and helping to avoid over- or under-tightening. The tapered front allows urinary catheterisation, interventional radiology, external fixation and abdominal surgery without removal, and every material except the buckle's two stainless steel springs is radiolucent.

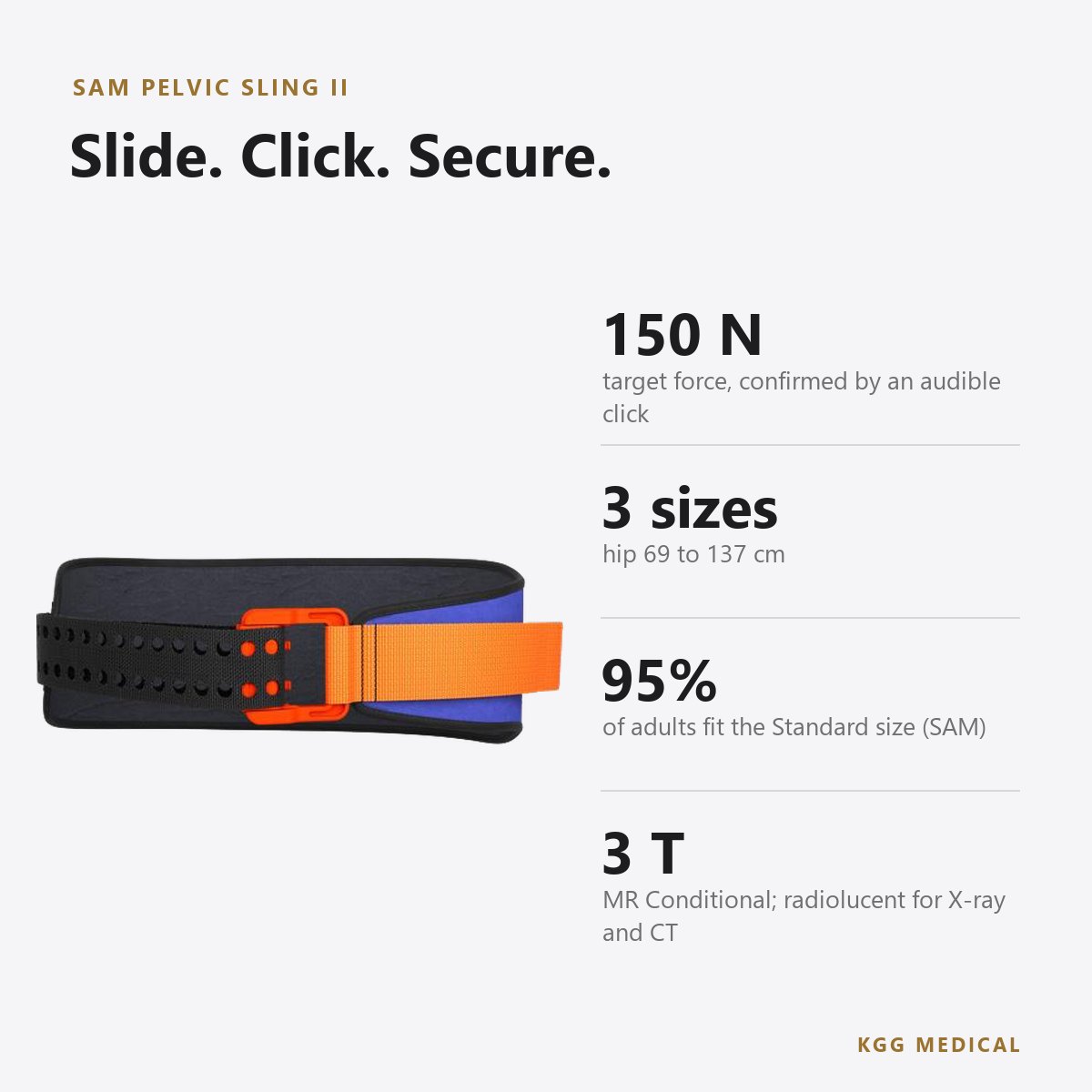

Key specifications
Why the SAM Pelvic Sling II
The click means correct

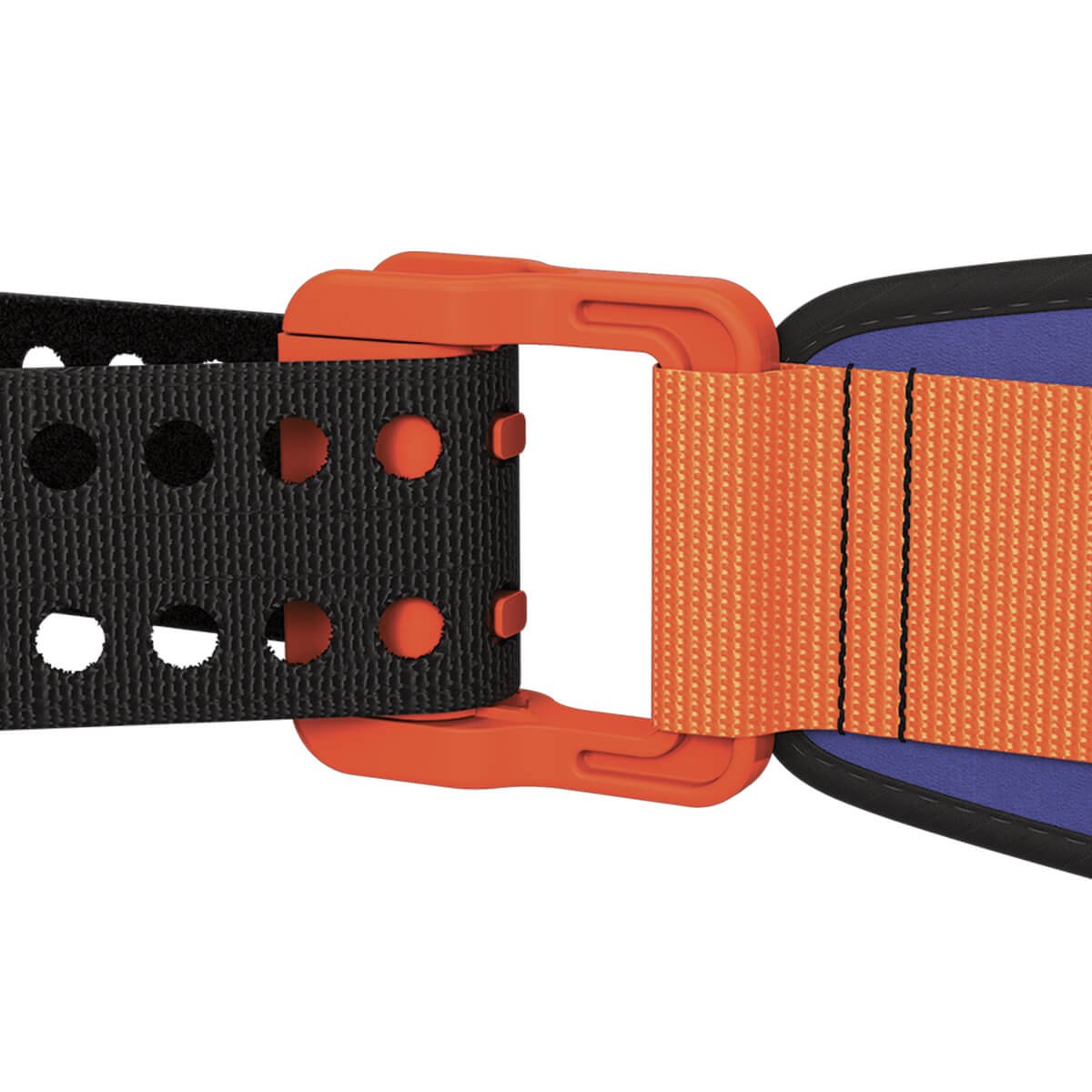

The AutoStop buckle releases two prongs when about 150 N is reached. Responders hear and feel the click, then fix the strap with hook-and-loop.
Leaves room to treat
The narrow, tapered front leaves access for catheterisation, interventional radiology, external fixation and abdominal surgery without removing the sling.
Easier transfers
A low-friction posterior slider makes it easier to slide the sling under a patient and move them between stretchers.
Image without removal
Radiolucent materials allow X-ray and CT with the sling in place, and it is MR Conditional at 3 T when firmly attached.
Where it is used
Ambulance and air ambulance services, emergency departments, trauma centres, military medicine and industrial or event medical teams.
In the box
One SAM Pelvic Sling II in the selected size, with instructions for use. Pack sizes and configurations are confirmed with the quotation.
Clearance & compliance
CE marked (CE mark in IFU symbol glossary; EU authorised representative listed) · FDA Class I device, listed by SAM Medical (product code IPW; FDA registration and listing database checked 12 Oct 2026) · MR Conditional, 3 T. Supplied subject to registration in each destination country (MOHAP, DoH, DHA, SFDA or the equivalent authority). Certificates, declarations of conformity, IFUs and registration documents are provided with every quotation. Specifications are indicative and subject to manufacturer change.
Where a country has an official agent or authorised distributor, we source the item through it — or directly from the manufacturer if necessary. Product names, trademarks and images belong to their respective owners.
Questions
Is the SAM Pelvic Sling II available in the UAE and the GCC?
KGG sources the SAM Pelvic Sling II on request for ambulance services, hospitals, trauma centres and defence medical units in the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain and Oman. It is supplied subject to registration in each destination country, and availability is confirmed with each quotation.
How do I get a price?
Add the SAM Pelvic Sling II to your quote list or use Request a quote. We reply with pricing, lead time and the documents available for your country.
Which size do we need?
Sizes follow hip circumference: Small 69–114 cm, Standard 81–127 cm and Large 91–137 cm. SAM states the Standard size fits 95% of adults; many services stock Standard plus a few Small and Large.
Can the patient go to CT or MRI with it on?
Yes, with conditions. All materials except two buckle springs are radiolucent, and the sling is MR Conditional at 3 T or less. It must stay firmly attached and must not be repositioned inside the magnet room.
Is it reusable?
No. SAM lists the Pelvic Sling II as a single-use device; reuse may cause infection or reduced performance.
What is the military version?
PS301-OD-EN is the Standard size in OD green and black, with NSN 6515-01-509-6866. Function and fit match the civilian Standard.
Request a quote
Get pricing for the SAM Pelvic Sling II.
Tell us the quantity, delivery city and whether you are ordering for a facility, a team or a patient. We reply with pricing, lead time and the regulatory documents for your country.
