SAM Medical
Slack removed. Automatically.

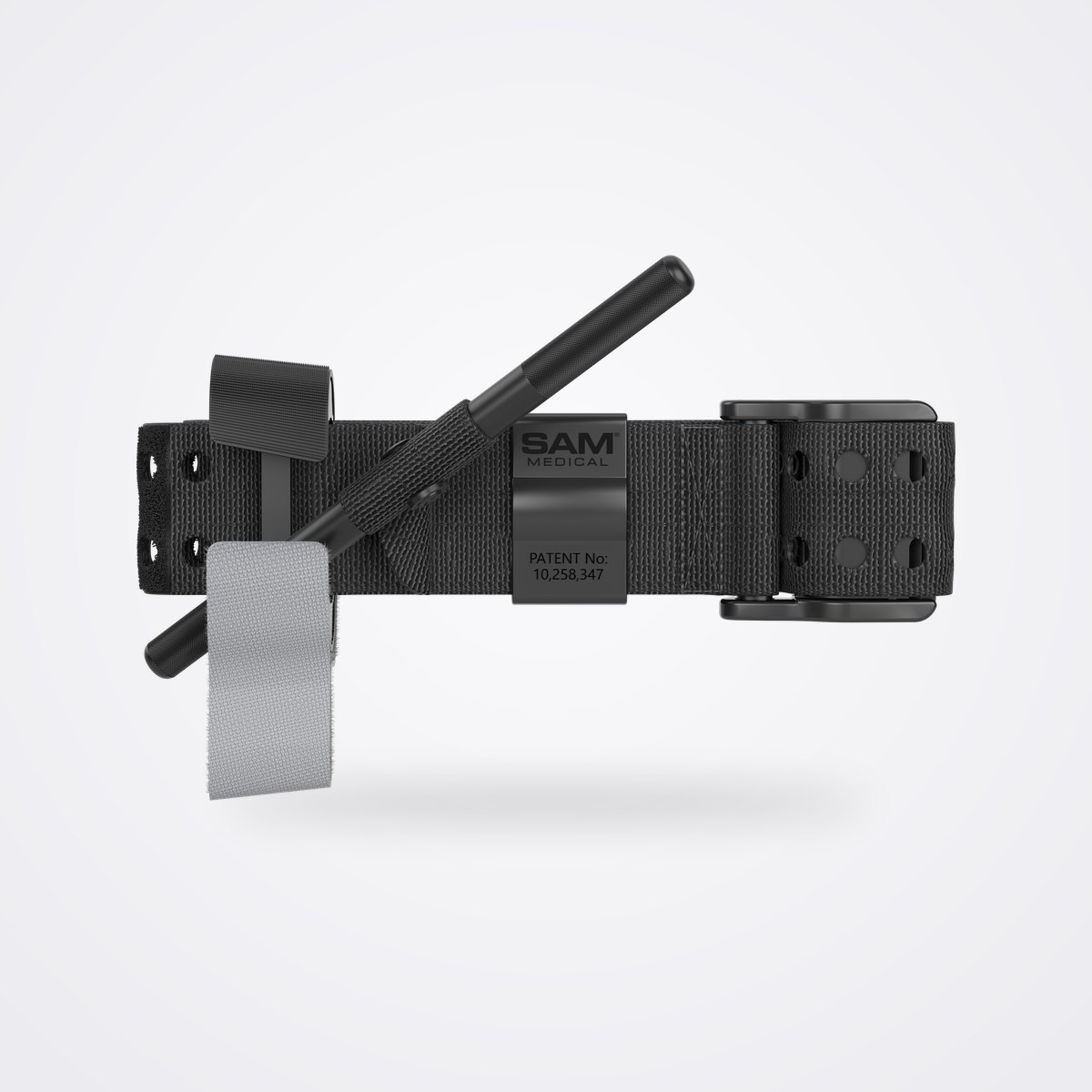

The SAM XT controls severe limb bleeding with a buckle that auto-locks into the belt once sufficient circumferential force is applied, so every application starts from a consistent baseline tension before the windlass is turned. Because almost all slack is removed first, fewer windlass turns are needed. The flexible TRUFLEX plate adapts to different limb sizes, the angled C-hooks make windlass locking easier, and a night-vision-optimised time band records when it was applied.

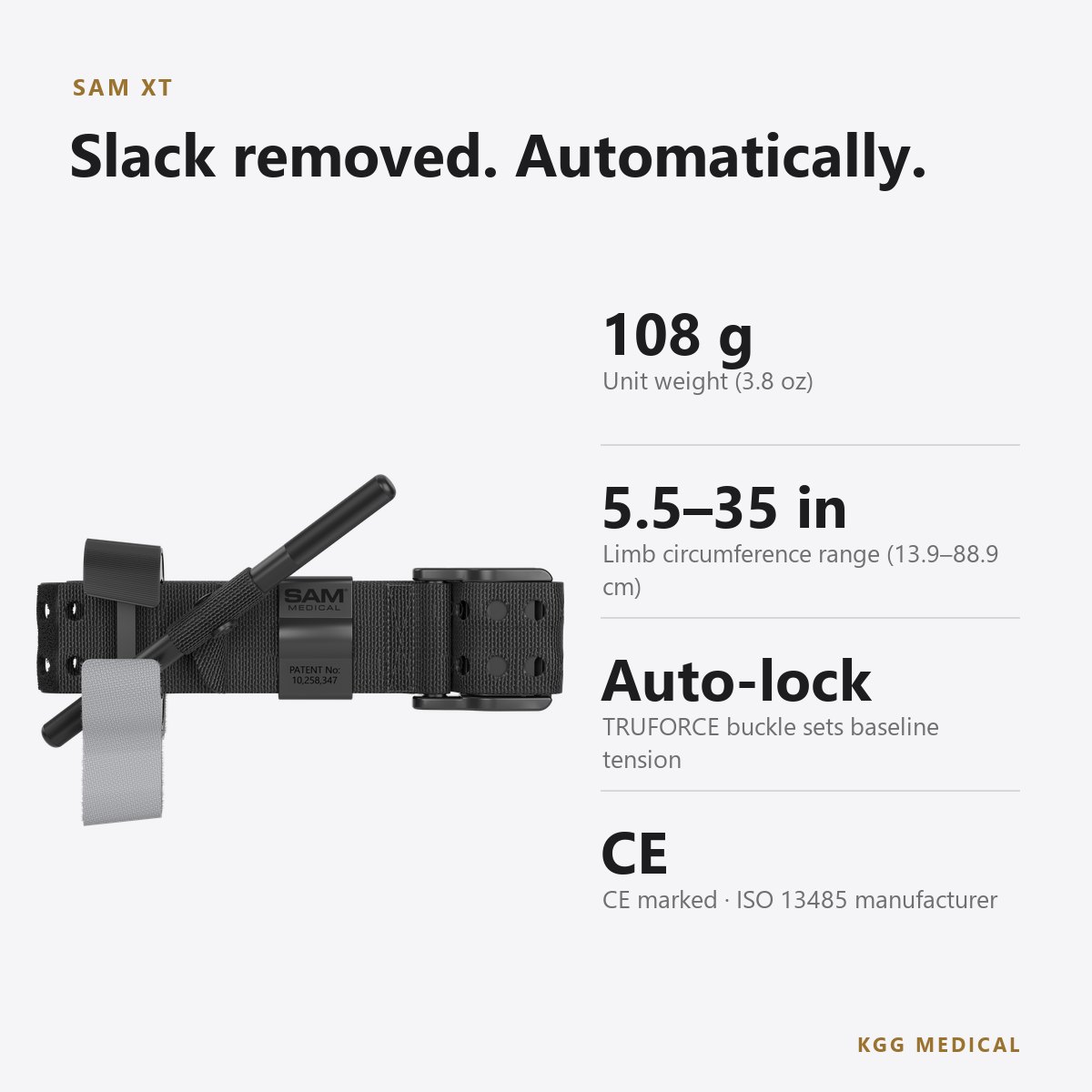

Key specifications
Why the SAM XT
Consistent tension
The TRUFORCE buckle locks into the belt at a predetermined circumferential force, removing nearly all slack and giving every user the same baseline before the windlass is turned.
Fewer windlass turns
With slack controlled by the buckle, occlusion is reached with fewer windlass turns than traditional windlass tourniquets, according to SAM Medical.
Adjustable and removable
A tab on the buckle unlocks it for readjustment or removal, and the flexible TRUFLEX plate fits around different limb shapes and sizes.
Built for the field
Aluminium windlass with diamond knurling, stainless-steel buckle springs and night-vision-optimised strap and time band for low-light use.
Where it is used
Military and police first-aid kits, EMS and ambulance services, public-access bleeding-control kits, worksites and humanitarian field teams.
In the box
One SAM XT tourniquet, individually shrink-wrapped, with printed instructions for use. Supplied 25 per case. Pack sizes and configurations are confirmed with the quotation.
Clearance & compliance
CE marked (self-certified, Declaration of Conformity; EU AR Emergo Europe) · FDA establishment registration and device listing (SAM Medical Products, OR, USA; non-pneumatic tourniquet) · ISO 13485:2016, MDSAP certified. Supplied subject to registration in each destination country (MOHAP, DoH, DHA, SFDA or the equivalent authority). Certificates, declarations of conformity, IFUs and registration documents are provided with every quotation. Specifications are indicative and subject to manufacturer change.
Where a country has an official agent or authorised distributor, we source the item through it — or directly from the manufacturer if necessary. Product names, trademarks and images belong to their respective owners.
Questions
Is the SAM XT available in the UAE and the GCC?
Yes. KGG sources the SAM XT on request for hospitals, ambulance services, security and defence organisations, and corporate safety programmes in the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain and Oman, supplied subject to registration in each destination country. Availability is confirmed with each quotation.
How do I get a price?
Add the SAM XT to your quote list or use Request a quote. We reply with pricing, lead time and the documents available for your country.
What does the TRUFORCE buckle actually do?
It locks into the strap holes only once enough circumferential force has been applied, so slack is removed to a consistent level before the windlass is used. The buckle has a tab for unlocking, readjustment and removal.
What limb sizes does it fit?
SAM Medical's data sheet states a limb circumference range of 13.9 cm to 88.9 cm (5.5 in to 35 in).
Which colour should we order?

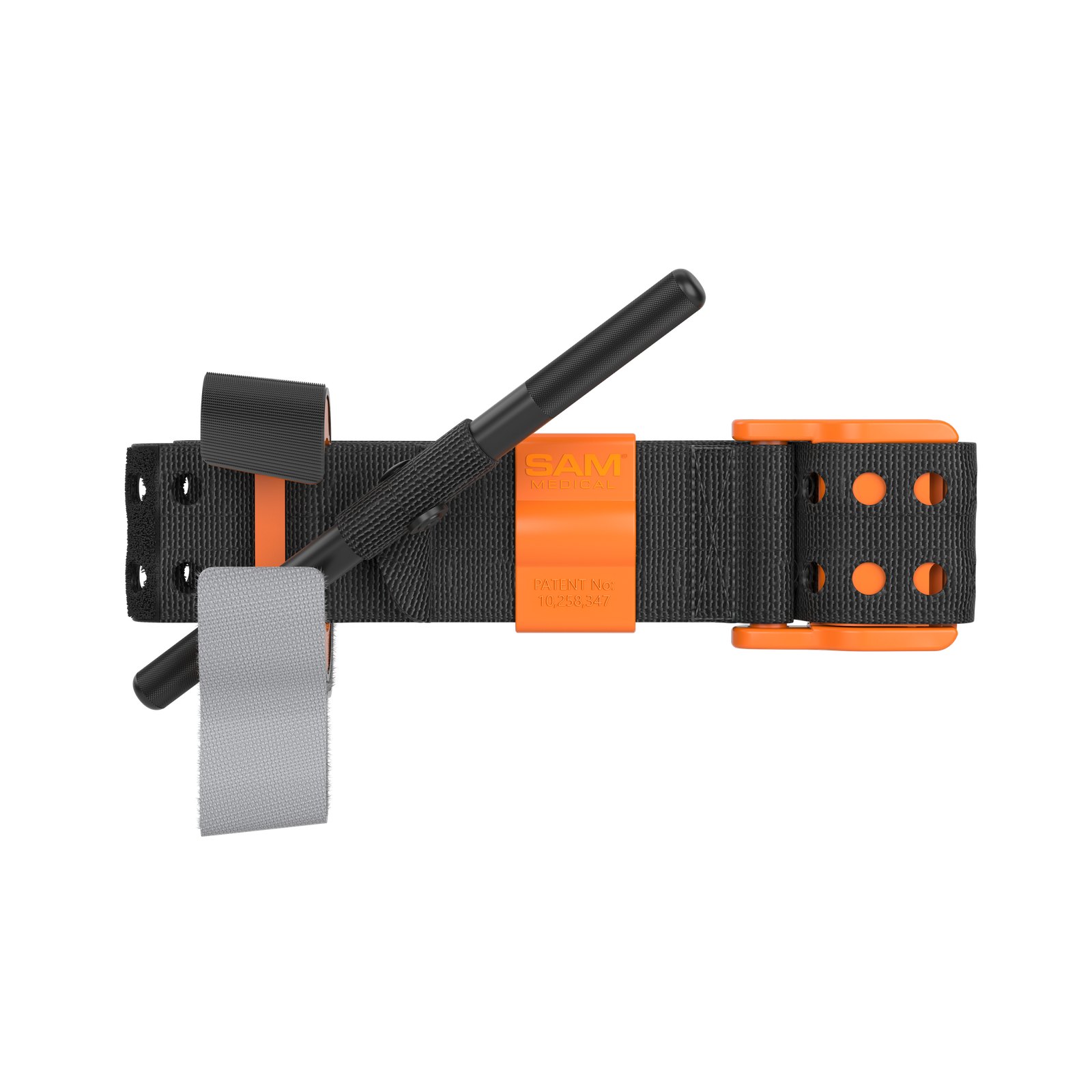

Tactical Black for military and tactical kits, Hi-Viz Orange where visibility in a kit matters. Confirm with us whether Hi-Viz Blue is supplied as an operational or training unit for your order.
Can it be reused?
No. The SAM XT is labelled single use; after use it should be disposed of according to facility protocol for biological waste.
Request a quote
Get pricing for the SAM XT.
Tell us the quantity, delivery city and whether you are ordering for a facility, a team or a patient. We reply with pricing, lead time and the regulatory documents for your country.
