AccuVein
See the vein. Then the needle.

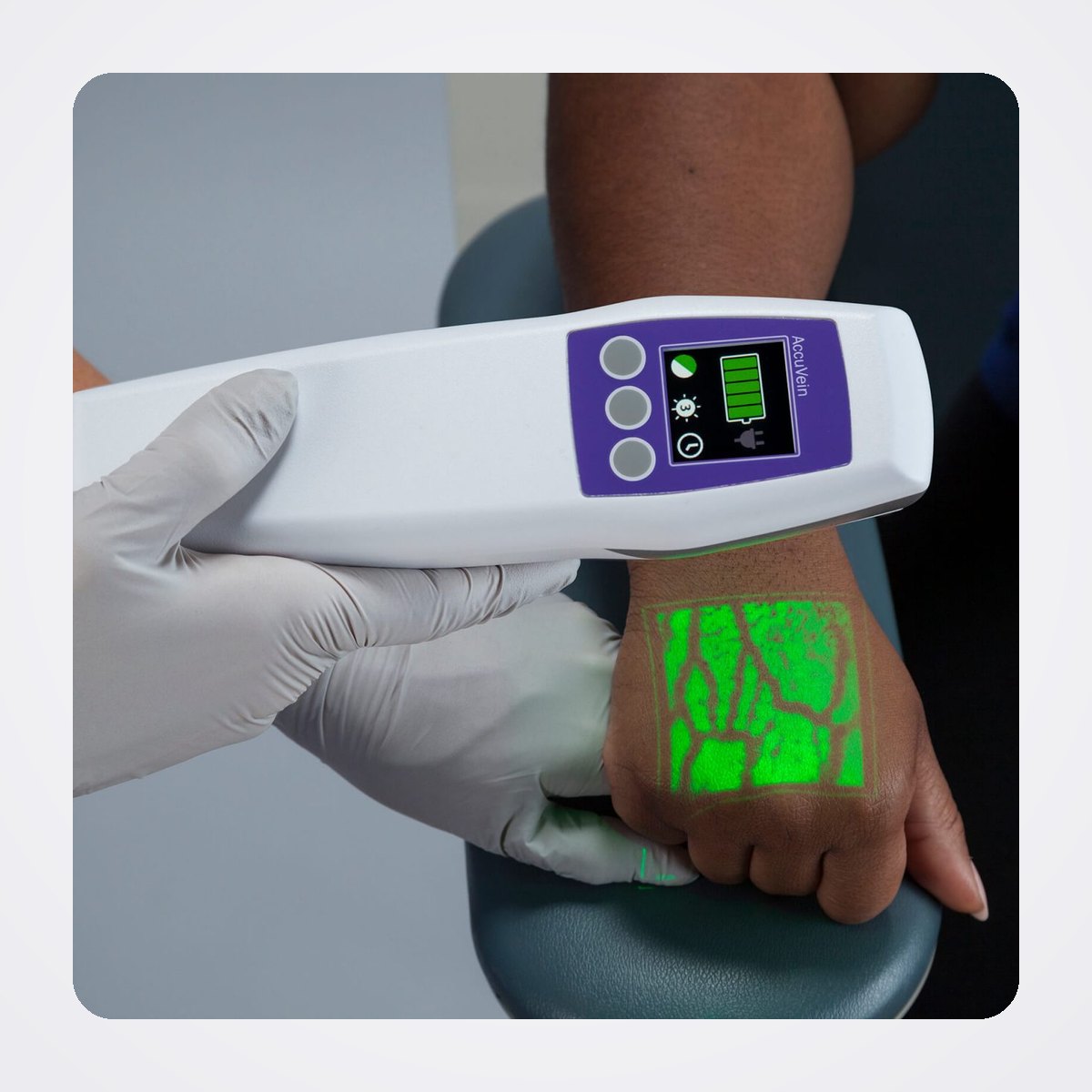

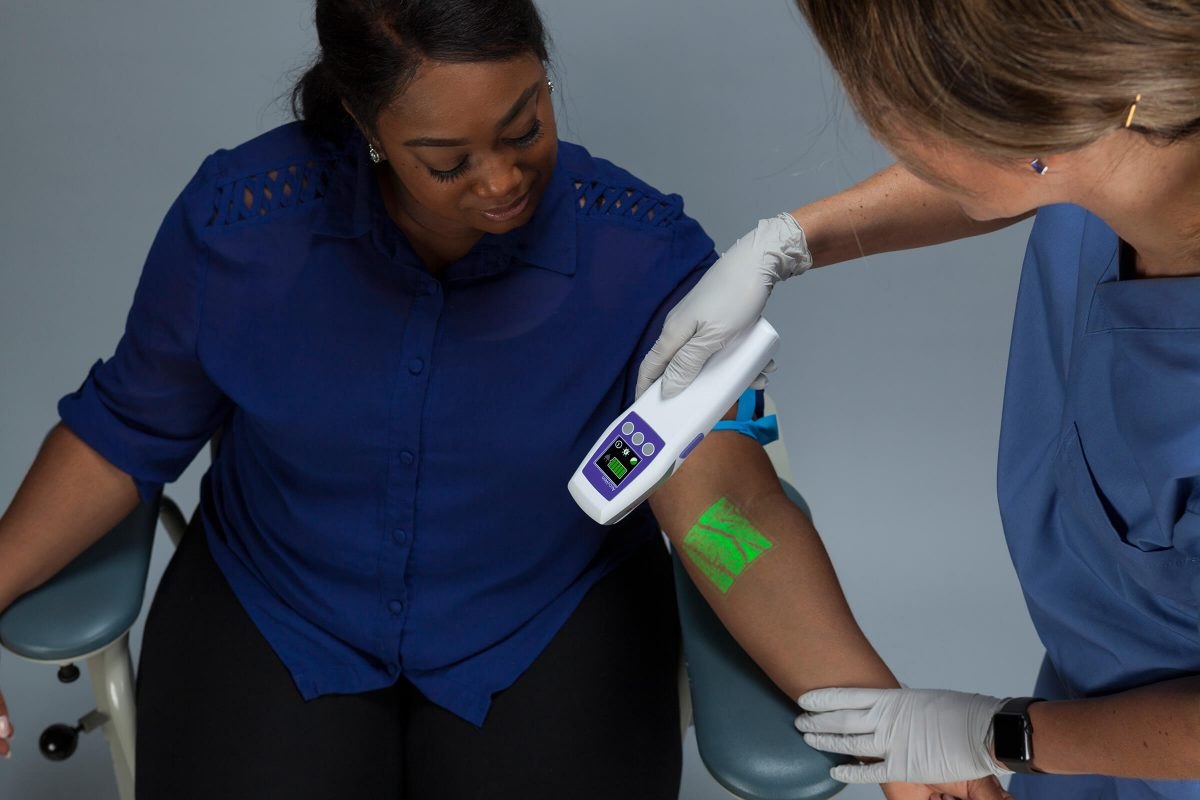

The AV500 scans the skin with near-infrared laser light and projects the vein pattern back onto the surface in bright green, showing veins, bifurcations and valves that are hard to see or feel. Patented True Center alignment is set in the factory, so no user alignment test is needed, and the image stays in focus 15–25 cm above the skin. It weighs 283 g, needs no skin contact and has a sealed housing with no fans or vents. It can be held in one hand or mounted on an arm or powered stand for hands-free cannulation.
Key specifications
Why the AccuVein AV500
Veins you cannot see
Near-infrared imaging shows superficial veins, bifurcations and valves on the skin surface, helping clinicians choose a site before inserting a needle or cannula.
Aligned at the factory
True Center technology shows the vein's centre line at any working distance, with no user alignment test before use.
All skin tones
AccuVein states the AV500 gives a clear, uniform vein image across skin tones, with adjustable brightness and an inverse mode for different lighting.
Handheld or hands-free
At 283 g it is easy to hold for a quick scan, then drops into a flex arm or powered stand to keep both hands free for cannulation.
Clean and simple
No skin contact, a sealed housing without fans or vents, and one-button start make it quick to use and wipe down between patients.
Where it is used
Emergency departments, ICUs, paediatric and oncology units, phlebotomy and blood donation, outpatient infusion and aesthetic clinics.
In the box
AccuVein AV500 device, desktop charging cradle and worldwide power supply (10 W), shipped in one box. HF510 arm and HF580 stand are optional. Pack sizes and configurations are confirmed with the quotation.
Clearance & compliance
FDA Class I, registered and listed (product code KZA, vein location device) · Class 1 laser product to IEC/EN 60825-1:2014. Supplied subject to registration in each destination country (MOHAP, DoH, DHA, SFDA or the equivalent authority). Certificates, declarations of conformity, IFUs and registration documents are provided with every quotation. Specifications are indicative and subject to manufacturer change.
Where a country has an official agent or authorised distributor, we source the item through it — or directly from the manufacturer if necessary. Product names, trademarks and images belong to their respective owners.
Questions
Is the AccuVein AV500 available in the UAE and the GCC?
KGG sources the AccuVein AV500 and its stands on request for hospitals, clinics and aesthetic practices in the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain and Oman, supplied subject to registration in each destination country. Availability is confirmed with each quotation.
What is the difference between the AV500 and the new AV600?
The AV600, launched in the US in March 2026, is AccuVein's fourth generation with a new projection engine, updated components and self-diagnostics. It works with most AV500 chargers and stands. Ask us which model is available for your country.
Is the laser safe for eyes?
Yes. The AV500 is a Class 1 laser product, which AccuVein describes as eye-safe under all operating conditions with no special precautions.
Does it need calibration?
No. Alignment is set in the factory with True Center technology, so no user alignment or calibration is required before use.
How long does the battery last?
About two hours of continuous scanning per charge, with a full charge taking up to 3 hours 45 minutes in the cradle or powered stand.
How do I get a price?
Add the AccuVein AV500 to your quote list or use Request a quote, with any arm or stand you need. We reply with pricing, lead time and the documents required for your country.
