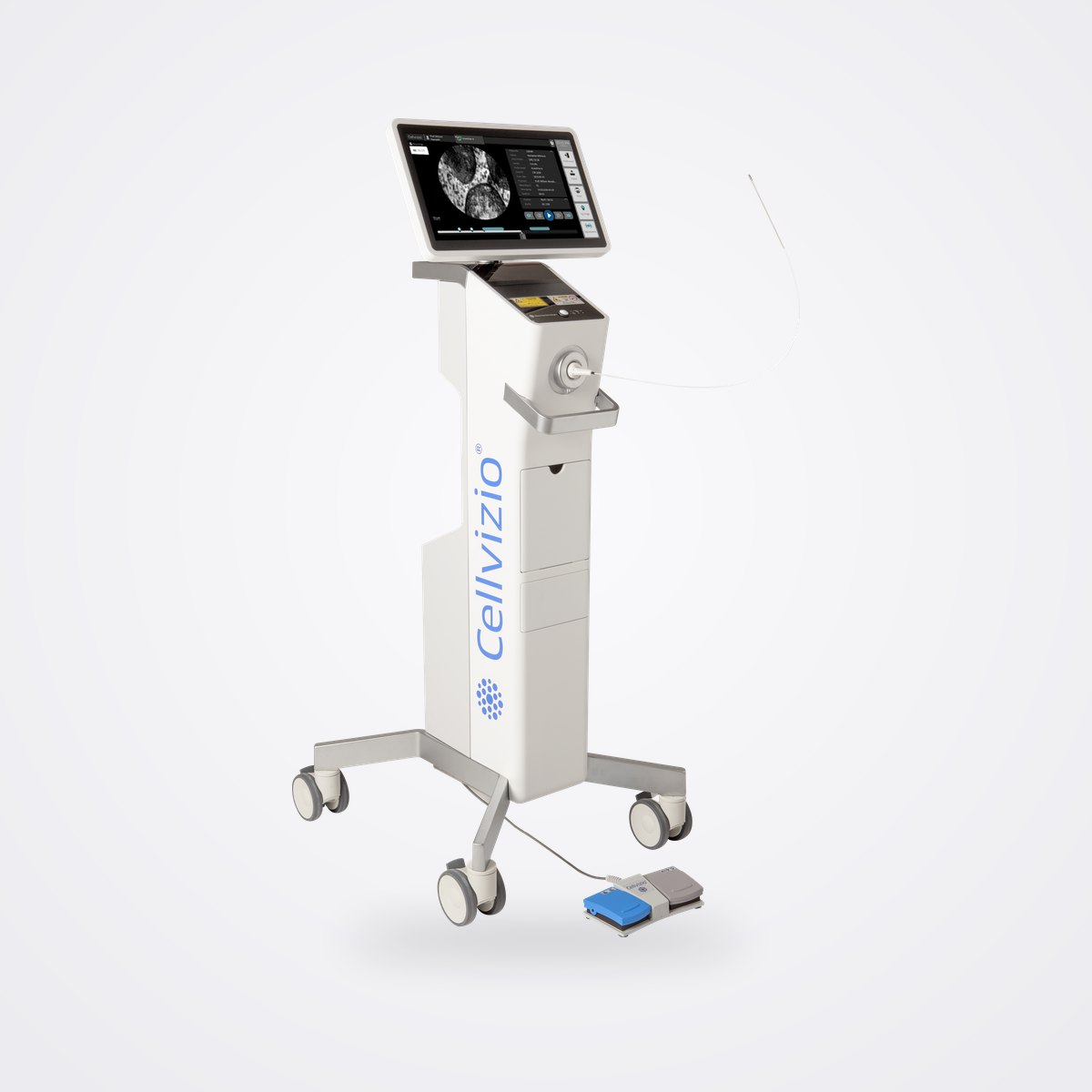

Cellvizio
See the cells. During the procedure.
Cellvizio passes fibre-optic Confocal Miniprobes through the working channel of an endoscope or through a 19 G needle and images a thin focal plane within the tissue with a 488 nm laser, at 8–12 frames per second. Physicians use it in gastroenterology, including Barrett's oesophagus, pancreatic cysts and bile-duct strictures, and in pulmonology and urology. The next-generation system adds a touch-screen interface, single-handed probe connection, picture-in-picture integration and DICOM export, and is AI-enabled for assisted image pattern recognition.

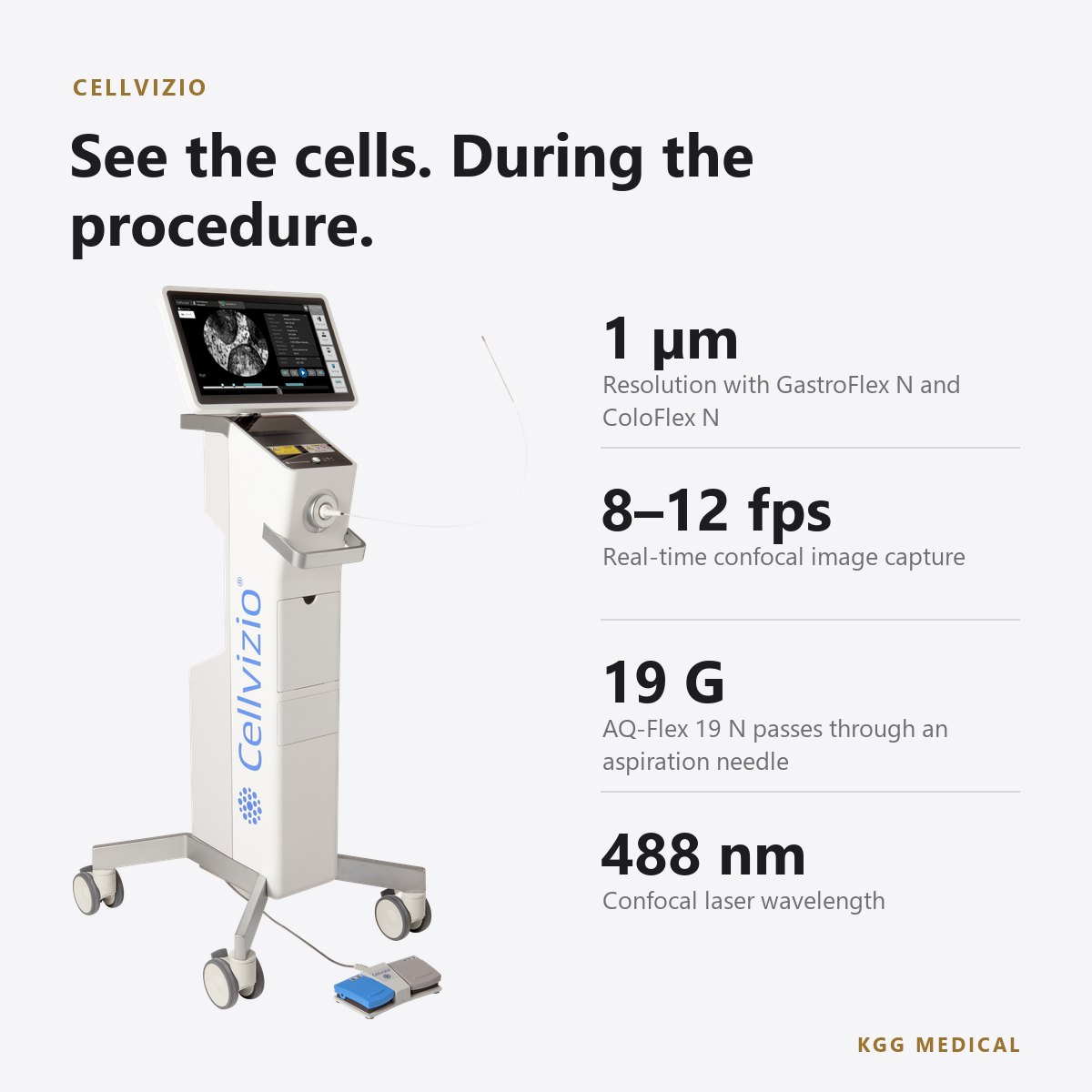

Key specifications
Why the Cellvizio
Cellular view, live
Cellvizio images cells and vessels inside the patient during the procedure, giving the endoscopist cellular information before a biopsy result is available.
Probes for each indication
Confocal Miniprobes fit standard endoscope channels from 2.8 mm down to 1.0 mm, and AQ-Flex 19 N passes through a 19 G needle during EUS-FNA or EBUS-TBNA.
Fits the procedure room
Picture-in-picture shows the confocal image beside the endoscopic view, and DICOM export sends images and video to PACS for archiving.
Simpler set-up

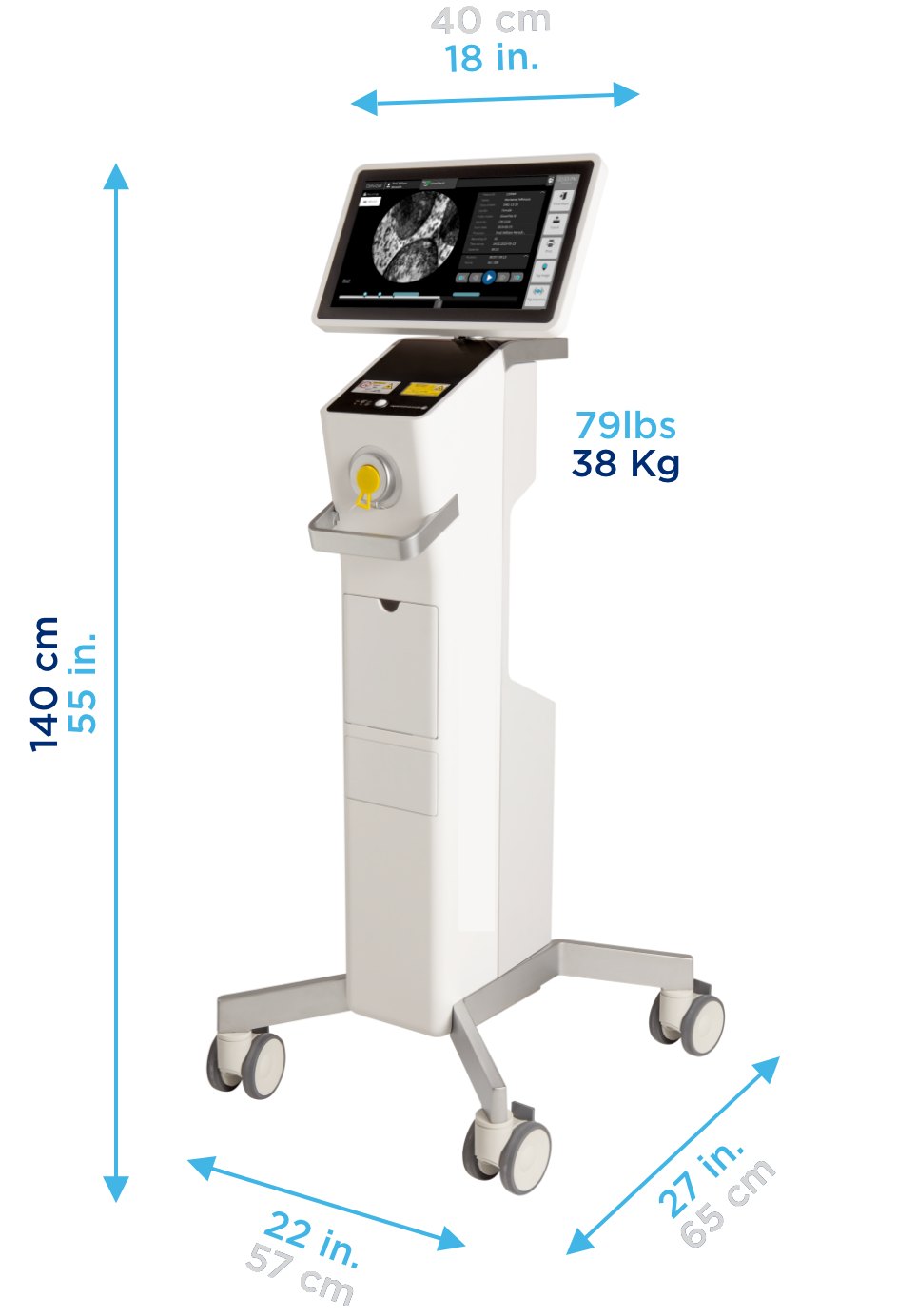

An orientable touch screen, single-handed probe connection and a slim mobile cart with a 57 × 65 cm footprint make the system quick to start and easy to move.
Ready for AI
The next-generation platform is AI-enabled for assisted image pattern recognition and can support additional wavelengths and modalities such as fluorescence-guided surgery.
Where it is used
Endoscopy units, interventional pulmonology, urology, and hospital gastroenterology centres handling Barrett's oesophagus, pancreatic cysts and bile-duct strictures.
In the box
Cellvizio system with footswitch. Confocal Miniprobes are chosen by indication and ordered separately; service contracts are offered by Mauna Kea Technologies. Pack sizes and configurations are confirmed with the quotation.
Clearance & compliance
CE marked (CE 0459), Class IIa, notified body G-MED · FDA 510(k) cleared (e.g. Cellvizio I.V.E. system with Confocal Miniprobes, K212322, 2021). Supplied subject to registration in each destination country (MOHAP, DoH, DHA, SFDA or the equivalent authority). Certificates, declarations of conformity, IFUs and registration documents are provided with every quotation. Specifications are indicative and subject to manufacturer change.
Where a country has an official agent or authorised distributor, we source the item through it — or directly from the manufacturer if necessary. Product names, trademarks and images belong to their respective owners.
Questions
Is Cellvizio available in the UAE and the GCC?
KGG sources Cellvizio systems and Confocal Miniprobes on request for hospitals and endoscopy centres in the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain and Oman, supplied subject to registration in each destination country. Availability is confirmed with each quotation.
Which probe do we need?
It depends on the indication: GastroFlex N for the upper GI tract, ColoFlex N for the colon, CholangioFlex N for bile and pancreatic ducts, AQ-Flex 19 N through a 19 G needle (for example in pancreatic cysts or EBUS-TBNA) and AlveoFlex N for the airways.
How many times can a probe be used?
Mauna Kea lists 20 uses for GastroFlex N, ColoFlex N and AlveoFlex N, and 10 uses for CholangioFlex N and AQ-Flex 19 N.
Does it replace biopsy?
Mauna Kea states that diagnostic assessment should always be made by the attending physician using all clinical, endoscopic and other relevant information. Cellvizio adds real-time cellular imaging; it is not presented as a replacement for histology.
Is a contrast agent needed?
Imaging of blood flow and microvasculature uses fluorescein sodium as a contrast agent, according to the FDA indication. Fluorescein is a medicine and is sourced and registered separately.
How do I get a price?
Add Cellvizio to your quote list or use Request a quote. We reply with pricing, lead time and the documents required for your country.
Request a quote
Get pricing for the Cellvizio.
Tell us the quantity, delivery city and whether you are ordering for a facility, a team or a patient. We reply with pricing, lead time and the regulatory documents for your country.
