BladderScan
Bladder volume. In seconds.

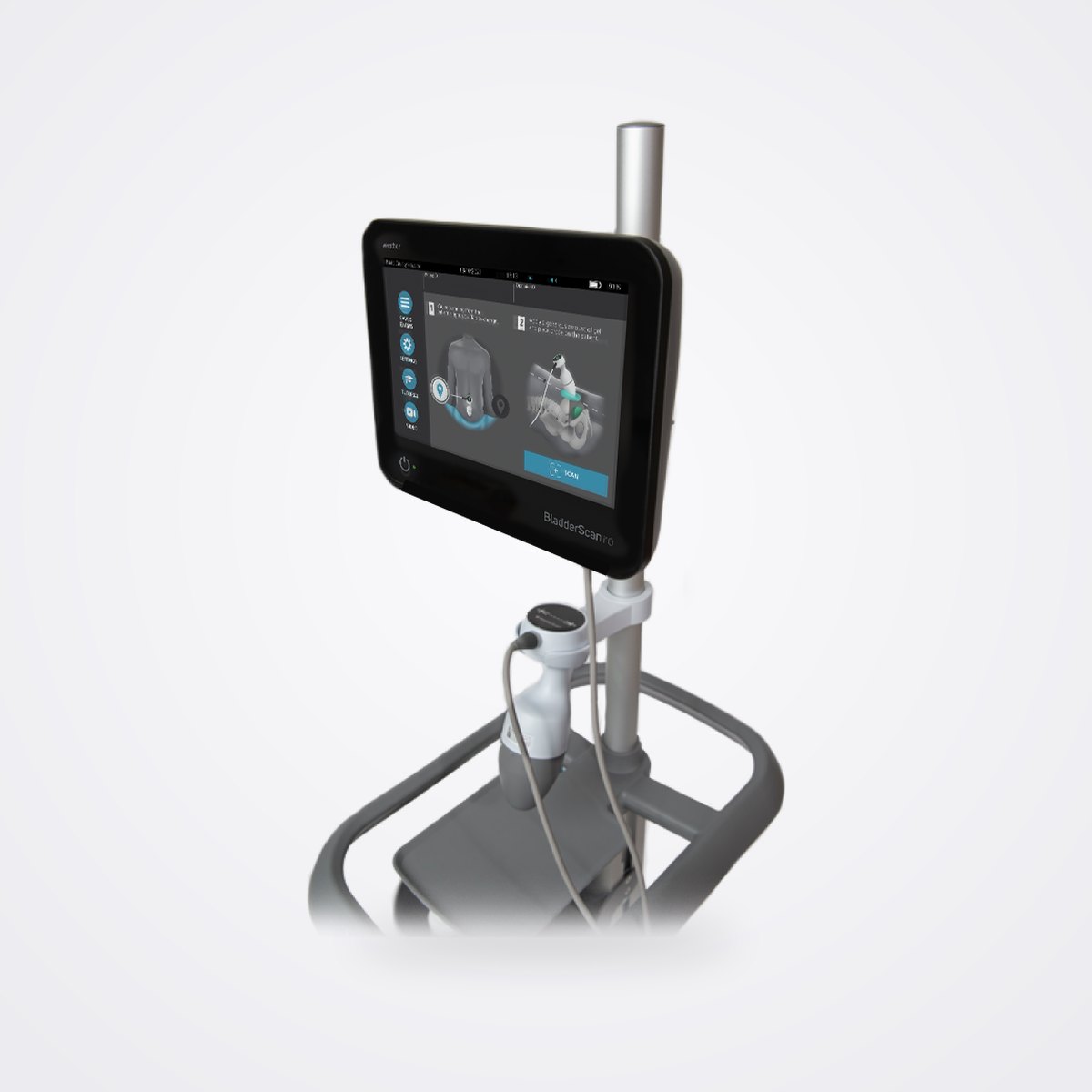

BladderScan i10 combines a 3D VMODE probe with ImageSense, Verathon's AI technology, which detects bladder location, size and shape and measures volume automatically within seconds. A 10.1-inch touchscreen guides the user with automatic bladder location and BladderTraq contour tracking. Results chart to the EHR by scanning the screen or a printout with a barcode wand, without a network connection. Hospitals use it to check urinary retention and reduce unnecessary catheterisation.
Key specifications
Why the BladderScan i10
AI that finds the bladder
ImageSense uses real-world data to detect bladder location, size and shape across paediatric and adult patients and anatomies, so results are consistent between users.
Volume within seconds

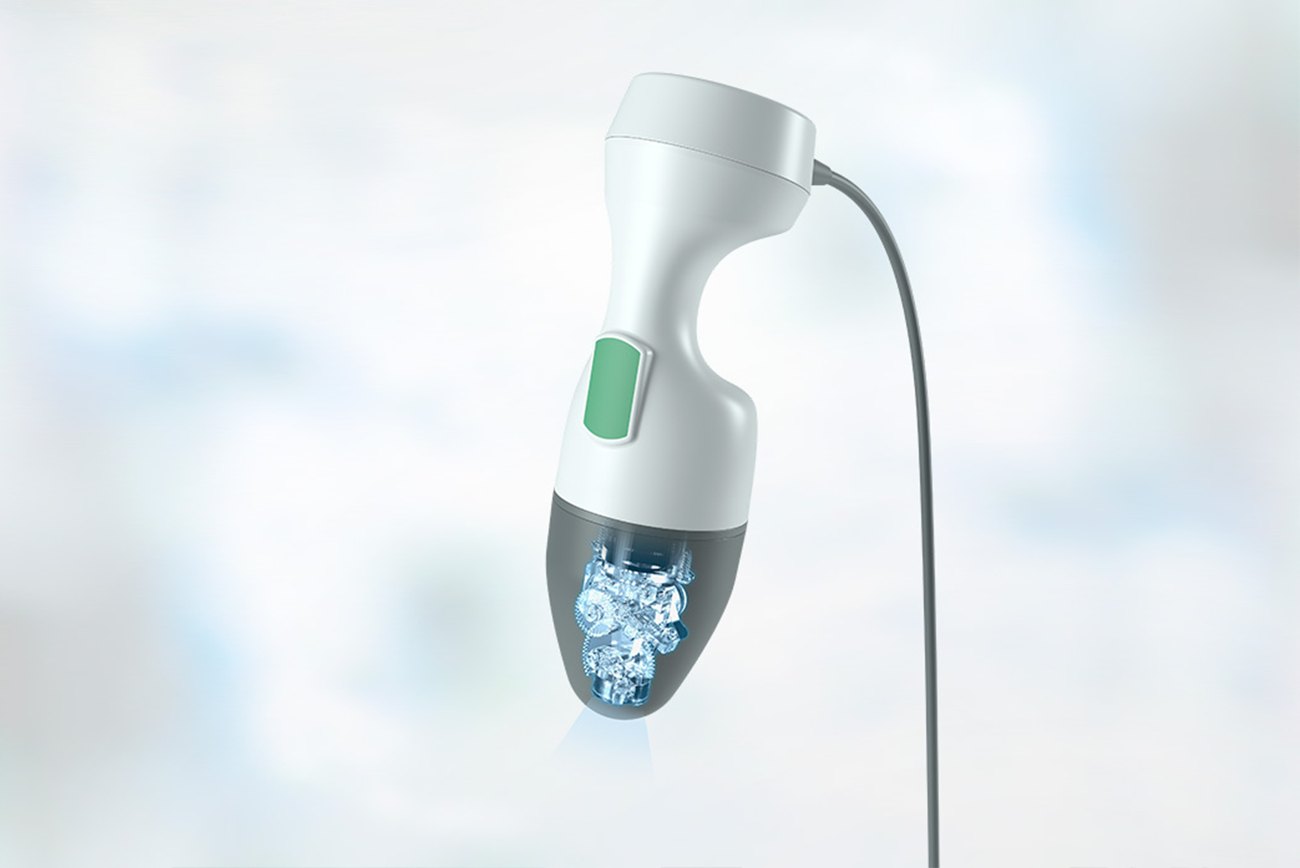

The 3D probe and ImageSense measure bladder volume automatically, guided by a 10.1-inch touchscreen with automatic bladder location and contour tracking.
Charting without IT projects
Exam results transfer to the electronic record by scanning the screen or a printout with an existing barcode wand; no network connection is required.
Built for hospital corridors
Sealed IPX4 probe, IPX2 console, MIL-STD-810H drop testing, swappable battery and no routine calibration keep the scanner in service.
Where it is used
Medical-surgical wards, post-anaesthesia recovery, emergency departments, urology, rehabilitation, maternity and long-term care.
In the box
BladderScan i10 console with 3D probe and glide workstation; battery, charger, printer, barcode scanner and gel as configured. Pack sizes and configurations are confirmed with the quotation.
Clearance & compliance
Predecessor BladderScan Prime Plus: FDA 510(k) K172356. i10-specific FDA/CE statements not found in official text; confirmed with the quotation. Supplied subject to registration in each destination country (MOHAP, DoH, DHA, SFDA or the equivalent authority). Certificates, declarations of conformity, IFUs and registration documents are provided with every quotation. Specifications are indicative and subject to manufacturer change.
Where a country has an official agent or authorised distributor, we source the item through it — or directly from the manufacturer if necessary. Product names, trademarks and images belong to their respective owners.
Questions
Is the BladderScan i10 available in the UAE and the GCC?
KGG sources the BladderScan i10 and its accessories on request for hospitals and clinics in the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain and Oman, supplied subject to registration in each destination country. Availability is confirmed with each quotation.
Has it replaced the BladderScan Prime Plus?
Yes. Verathon now presents the BladderScan i10 as its next-generation bladder scanner and lists it as the current model. It adds ImageSense AI, a 10.1-inch touchscreen and EHR charting.
How accurate is it?

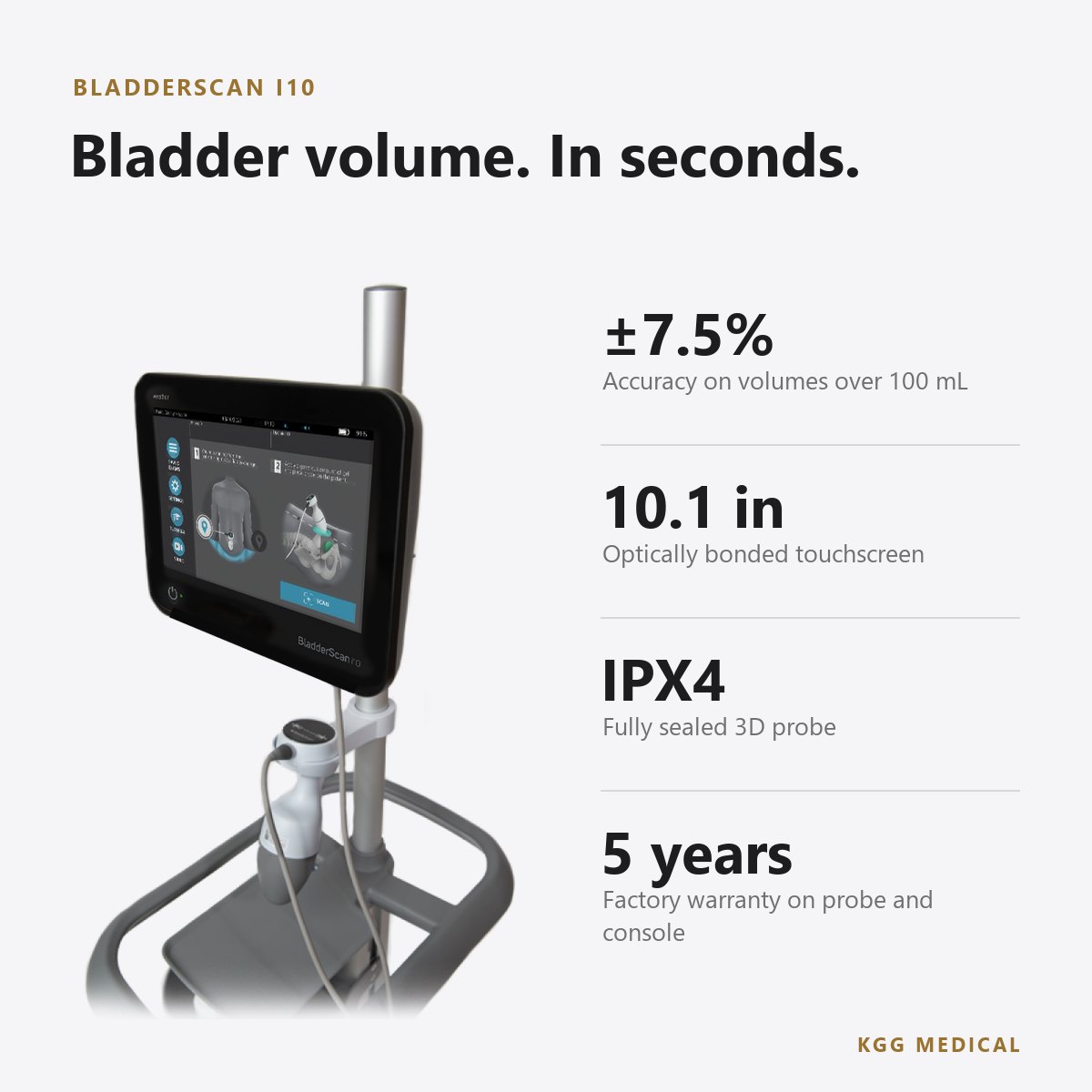

Verathon states ±7.5% on volumes over 100 mL and ±7.5 mL below 100 mL, measured on a tissue-equivalent phantom when used as instructed.
Can it be used on children?
Yes. ImageSense is designed to detect the bladder across paediatric and adult patient types and anatomies.
Does it need calibration or a network?
No routine calibration is needed, even when probes are swapped. Charting uses barcode wands already connected to the EHR, so no IT network connection is required.
How do I get a price?
Add the BladderScan i10 to your quote list or use Request a quote, with the configuration and accessories you need. We reply with pricing, lead time, warranty terms and the documents required for your country.
Request a quote
Get pricing for the BladderScan i10.
Tell us the quantity, delivery city and whether you are ordering for a facility, a team or a patient. We reply with pricing, lead time and the regulatory documents for your country.
