I.C. Medical
Smoke captured at the source.

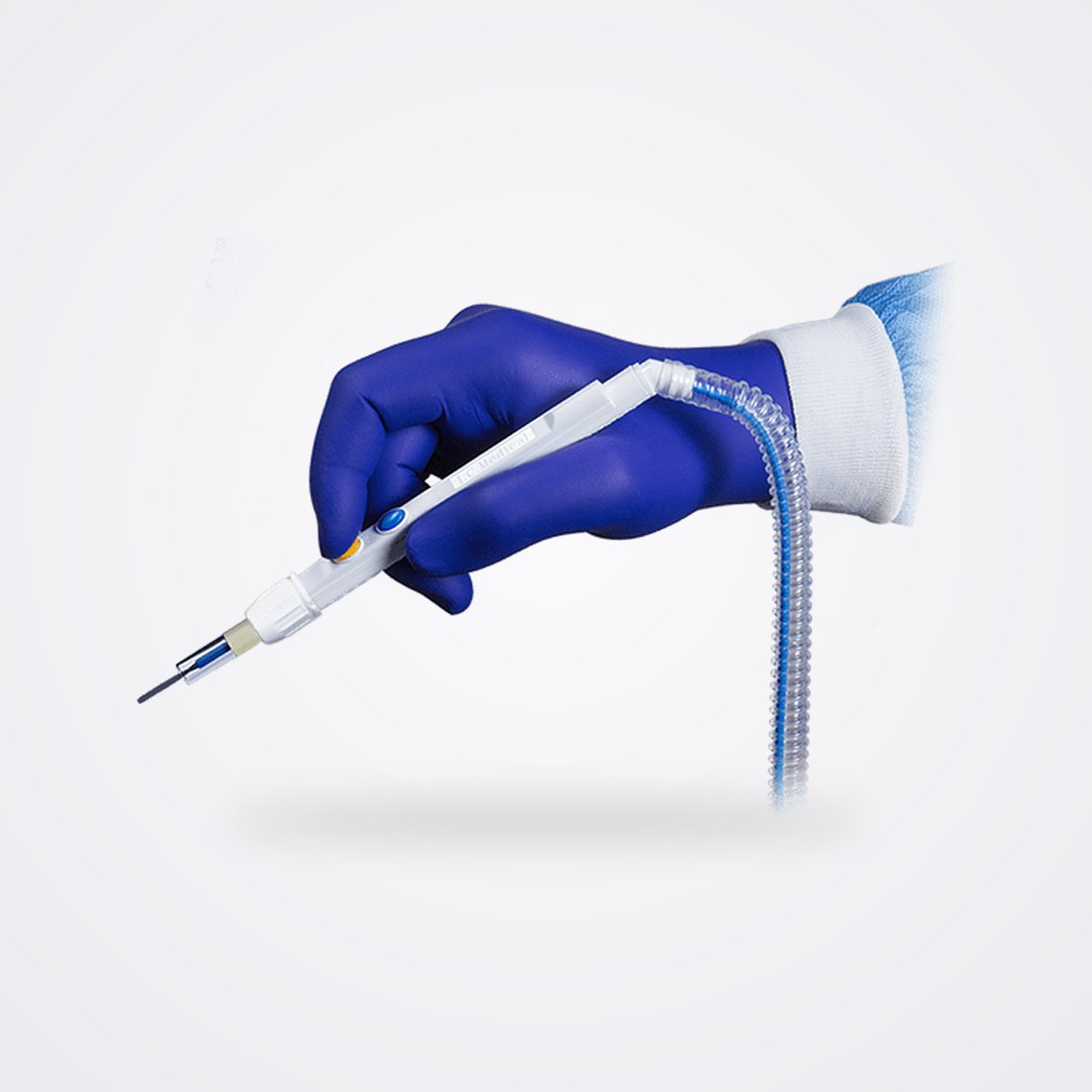

PenEvac combines a monopolar electrosurgical pencil with an integrated smoke channel, so plume is drawn away at its point of origin rather than by a separate wand held near the incision. The PenEvac1 has a telescopic tip that changes exposed electrode length during the case without swapping blades; the Non-Telescopic PenEvac is the lower-cost version with an adjustable, extendable blade. Both have a 45° swivel head, and I.C. Medical states they work with smoke evacuators from ConMed, Buffalo, Stryker Neptune and Zimmer Biomet.

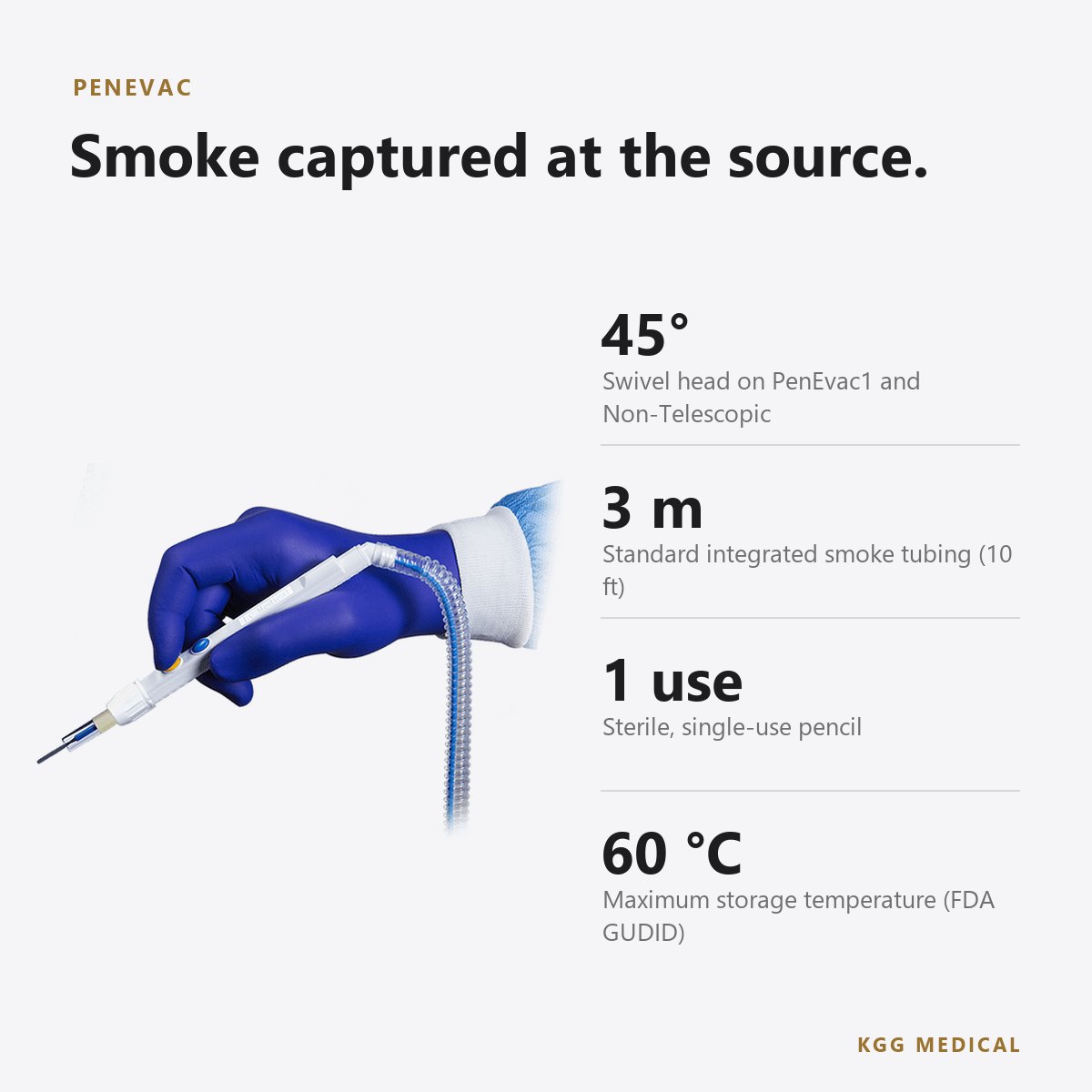

Key specifications
Why the PenEvac
Captured at the tip
Plume is drawn into the pencil where it is created, so no one has to hold a separate evacuation wand beside the incision.
Adjust, don't swap
The PenEvac1 telescopes and rotates to change exposed electrode length mid-procedure, so the surgeon does not stop to change tips for deep or superficial work.
Works with your evacuator
I.C. Medical states compatibility with smoke evacuators on the market, including ConMed, Buffalo, Stryker Neptune and Zimmer Biomet, with connector options for common inlets.
A clearer field

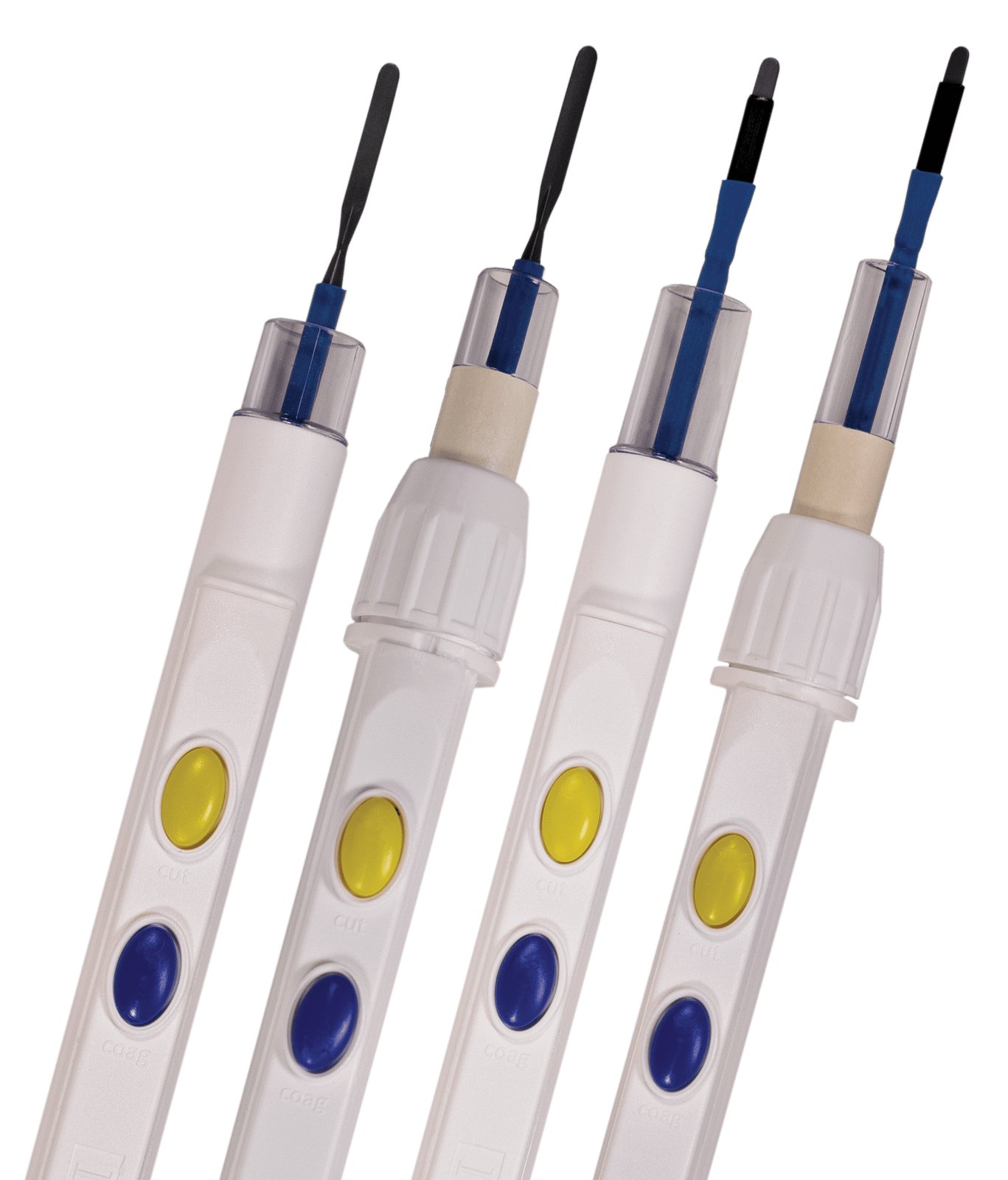

MaxReveal is the newest PenEvac, designed by I.C. Medical to improve visibility of the surgical site, with Diamond Crystal blades in 70 mm and 100 mm versions.
Where it is used
Operating theatres and day-surgery units performing open procedures with monopolar electrosurgery, including general, plastic and ENT surgery.
In the box
One sterile PenEvac pencil with integrated smoke tubing, electrode, evacuator connector and, in most configurations, a holster; contents vary by catalogue number. Pack sizes and configurations are confirmed with the quotation.
Clearance & compliance
FDA 510(k) cleared: Telescoping PenEvac K954088 (1995; modification K961616) and Non-Telescopic PenEvac K160160 (2016) · Class II, product code GEI · CE marking not stated by the maker. Supplied subject to registration in each destination country (MOHAP, DoH, DHA, SFDA or the equivalent authority). Certificates, declarations of conformity, IFUs and registration documents are provided with every quotation. Specifications are indicative and subject to manufacturer change.
Where a country has an official agent or authorised distributor, we source the item through it — or directly from the manufacturer if necessary. Product names, trademarks and images belong to their respective owners.
Questions
Is the PenEvac available in the UAE and the GCC?
KGG sources PenEvac smoke evacuation pencils on request for hospitals, surgical centres and day-surgery units in the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain and Oman, supplied subject to registration in each destination country. Availability is confirmed with each quotation.
PenEvac1 or Non-Telescopic PenEvac?
The PenEvac1 has a telescopic tip that rotates and adjusts exposed electrode length during the case. The Non-Telescopic PenEvac is the lower-cost version with an adjustable, extendable blade. Both have a 45° swivel head and integrated smoke tubing.
Will it work with our smoke evacuator?
I.C. Medical states PenEvac works with smoke evacuators on the market, including ConMed, Buffalo, Stryker Neptune and Zimmer Biomet. Tell us your evacuator model and inlet, and we quote the matching connector: universal, 22 mm to 10 mm, or 10 mm to filter.
Which electrodes are available?
Configurations include non-stick and stainless steel blades, non-stick and stainless steel ENT needles, a Megadyne E-Z Clean blade, a no-blade version and MaxReveal Diamond Crystal blades. The pencil also accepts standard electrodes, including hex-shaped ones.
Can it be stored in Gulf heat?
FDA GUDID records give a storage range of −18 °C to 60 °C (0–140 °F) at 30–85% relative humidity. Keep cases in their sealed packs within that range, away from direct sun in transit and in store rooms.
How do I get a price?
Add the PenEvac to your quote list or use Request a quote. We reply with pricing, lead time and the documents needed for your country.
Request a quote
Get pricing for the PenEvac.
Tell us the quantity, delivery city and whether you are ordering for a facility, a team or a patient. We reply with pricing, lead time and the regulatory documents for your country.
