AvantSonic
Bladder volume. Without a catheter.
AvantSonic bladder scanners use a 2.5 MHz 3D mechanical sector probe that sweeps a 120° fan through the lower abdomen and calculates bladder volume, so staff can check retention or post-void residual without a catheter. The Z5 and Z3 consoles show the bladder outline on a colour touchscreen, guide the user with on-screen arrows, store 1,000 cases and print results. The AS-2 is a hand-held unit with a 1.54-inch display that finds the bladder centre on its own and reads the volume aloud. All models are intended for qualified medical professionals.

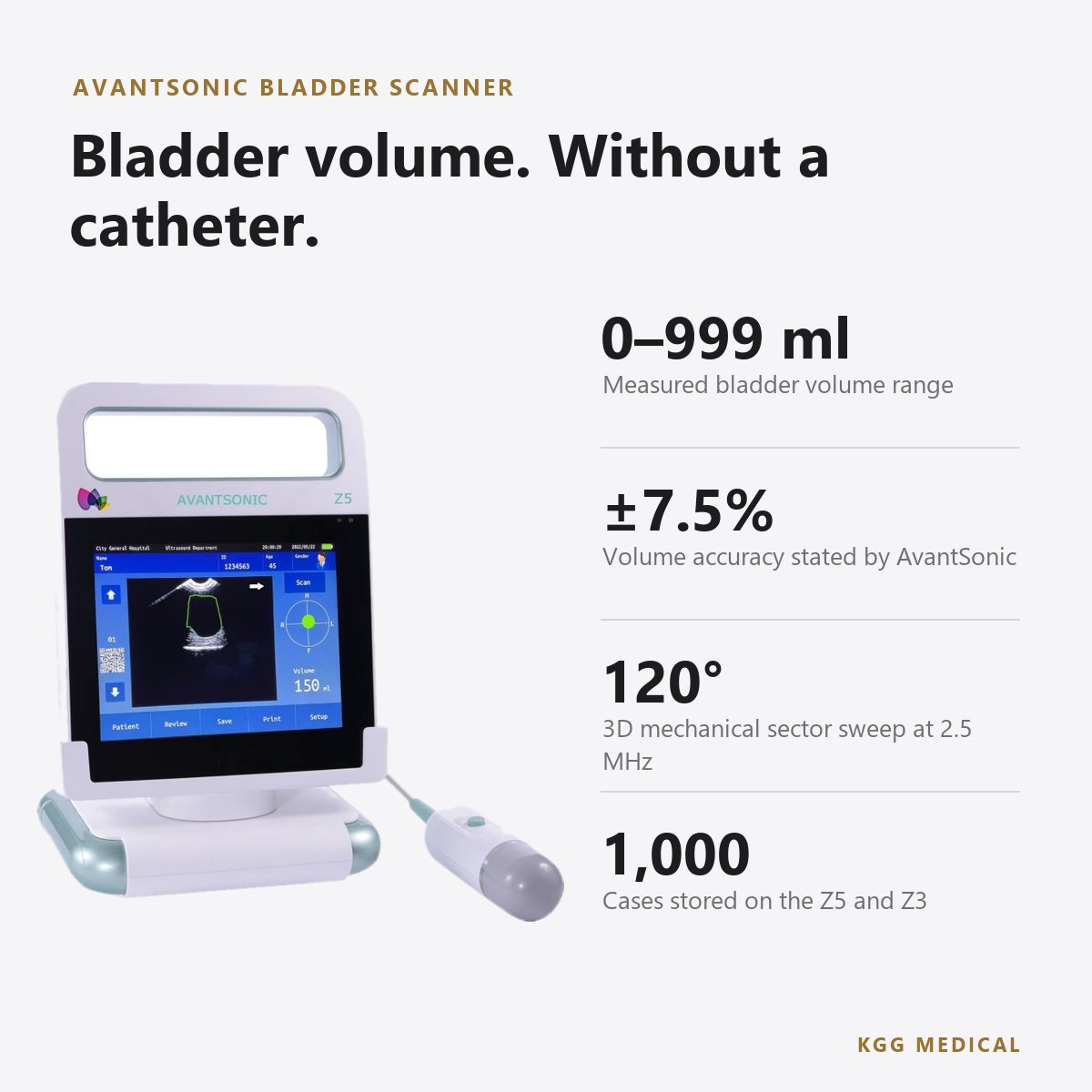

Key specifications
Why the AvantSonic bladder scanner
Volume in one sweep
A 2.5 MHz 3D mechanical probe scans a 120° fan through the bladder and calculates its volume from 0 to 999 ml, so a retention or residual check takes moments at the bedside.
Fewer needless catheters
AvantSonic positions its scanners as a daily ward tool to reduce catheter-associated urinary tract infection (CAUTI), and to time intermittent catheterisation in patients recovering bladder function.
Guided, not guessed
The Z5 and Z3 show arrows telling the user which way to move the probe; the hand-held AS-2 finds the bladder centre on its own before it measures, reducing errors from probe position.
Pick the format

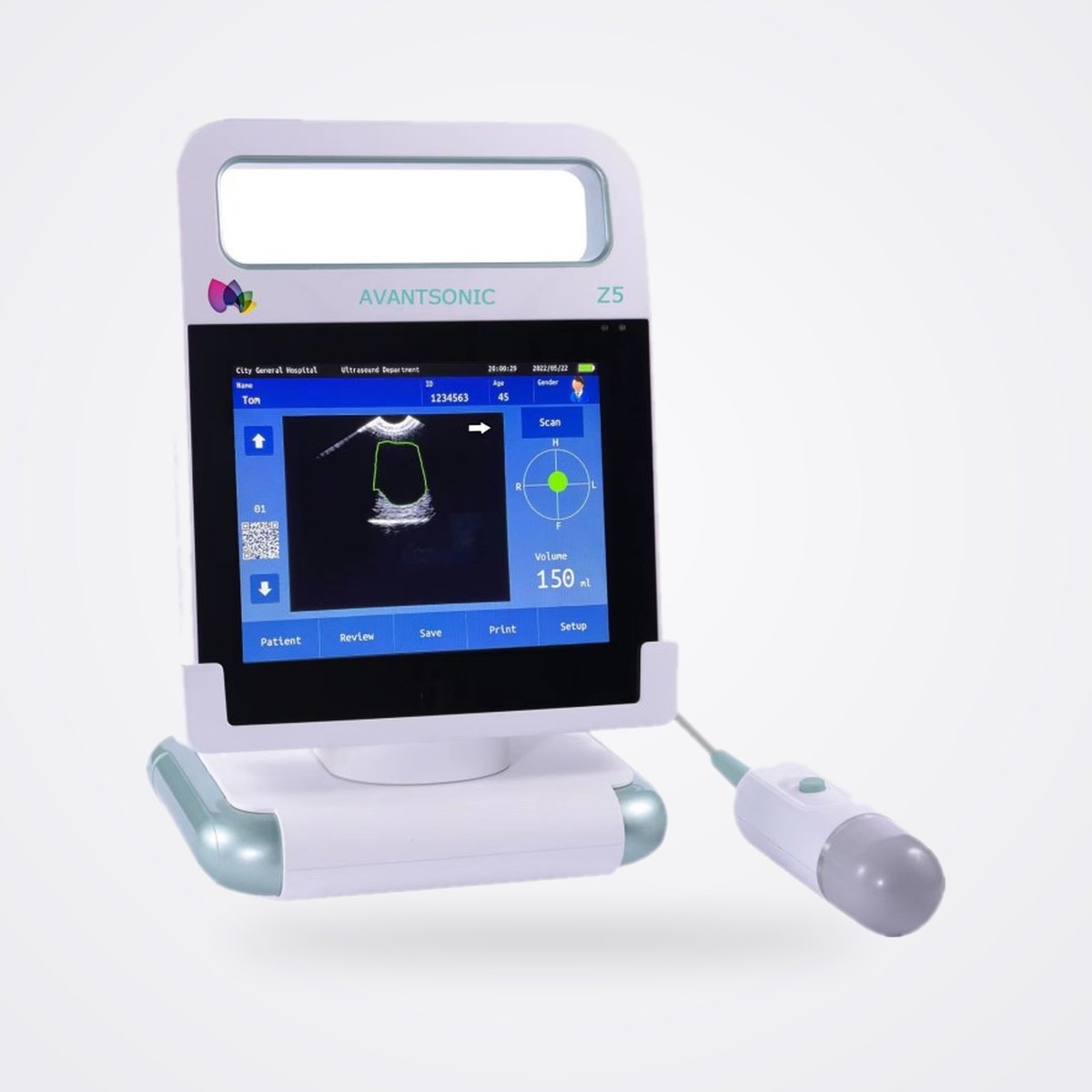

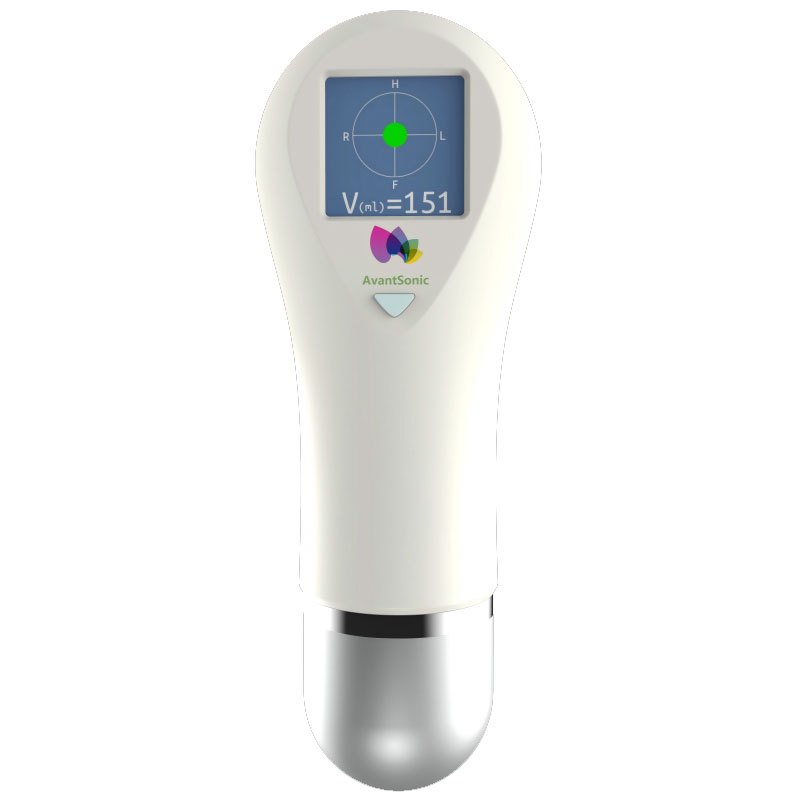

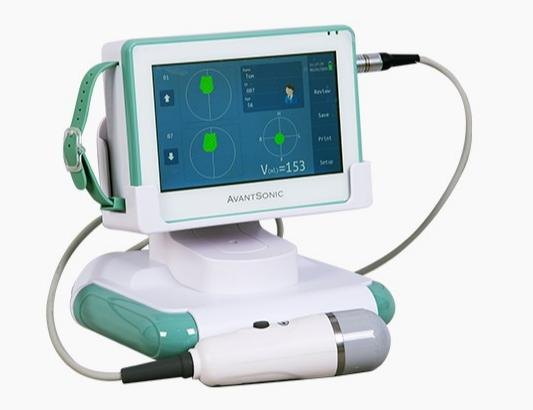

Choose the 8-inch Z5 console, the 7-inch Z3 on its cradle, or the pocket-sized AS-2 with a 1.54-inch screen and a voice read-out of the result.
Records that travel
The Z5 and Z3 store 1,000 cases, print results, show a patient QR code after each scan and synchronise patient information to a host computer.
Where it is used
Hospital wards, urology and gynaecology, post-operative care, rehabilitation and spinal units, stroke care, and radiotherapy departments that check bladder filling before pelvic treatment.
In the box
Z5 and Z3: console with 3D probe. AS-2: hand-held scanner with battery power adapter and USB charging cable (510(k) K230986). Trolley, printer paper and gel are confirmed with the quotation. Pack sizes and configurations are confirmed with the quotation.
Clearance & compliance
FDA 510(k) cleared: K171528 (24 Jan 2018, Bladder Scanner models PadScan DS3, PadScan Z3, PadScan Z5) and K230986 (29 Dec 2023, Bladder Scanner model AS-2); 21 CFR 892.1560, Class II, product codes IYO and ITX · CE: registered in EUDAMED under the EU MDR as Class IIa and on the market for 'Bladder scanner' Z5, Z3, AS-1 and AS-2 (Avantsonic Technology Co., Ltd., SRN CN-MF-000012322; EU authorised representative MedPath GmbH, DE-AR-000000087); notified body number not shown in EUDAMED. Supplied subject to registration in each destination country (MOHAP, DoH, DHA, SFDA or the equivalent authority). Certificates, declarations of conformity, IFUs and registration documents are provided with every quotation. Specifications are indicative and subject to manufacturer change.
Where a country has an official agent or authorised distributor, we source the item through it — or directly from the manufacturer if necessary. Product names, trademarks and images belong to their respective owners.
Questions
Is the AvantSonic bladder scanner available in the UAE and the GCC?
KGG sources the AvantSonic Z5, Z3 and AS-2 on request for hospitals, clinics and care facilities in the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain and Oman, supplied subject to registration in each destination country. Availability is confirmed with each quotation.
How do I get a price?
Add it to your quote list or use Request a quote. We reply with pricing, lead time and the documents for your country, and can quote a trolley and consumables with it.
Which model should I choose?
The Z5 has the largest screen (8-inch touchscreen) and suits busy wards. The Z3 has a 7-inch screen on a probe cradle. The AS-2 is a hand-held scanner with a small display and voice read-out, for staff who move from bed to bed.
How accurate is it?
AvantSonic states ±7.5% for the Z5 and Z3 across 0–999 ml. The FDA summary for the AS-2 gives ±10 ml below 100 ml and ±7.5% from 100 ml.
Are there patients it should not be used on?
The AS-2 510(k) summary says it is not for pregnant patients, patients with ascites, abdominal scars, a bladder catheter in place, or wounds at the scan site, as these affect accuracy or safety.
What happened to the PadScan DS3?
The DS3 was cleared with the Z3 and Z5 in 2018 but is no longer on AvantSonic's product list. KGG quotes the current Z5, Z3 and AS-2.
Request a quote
Get pricing for the AvantSonic bladder scanner.
Tell us the quantity, delivery city and whether you are ordering for a facility, a team or a patient. We reply with pricing, lead time and the regulatory documents for your country.
