LUCAS
Compressions that never tire.

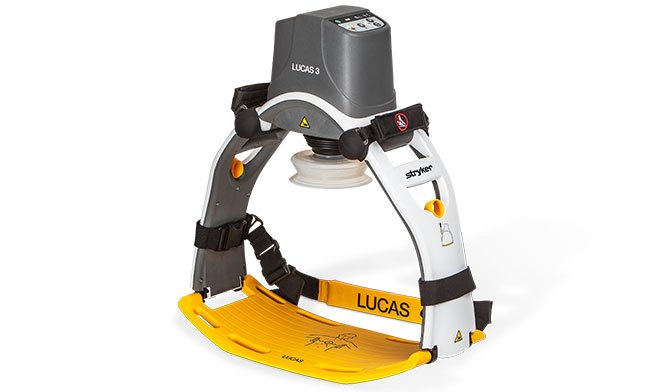

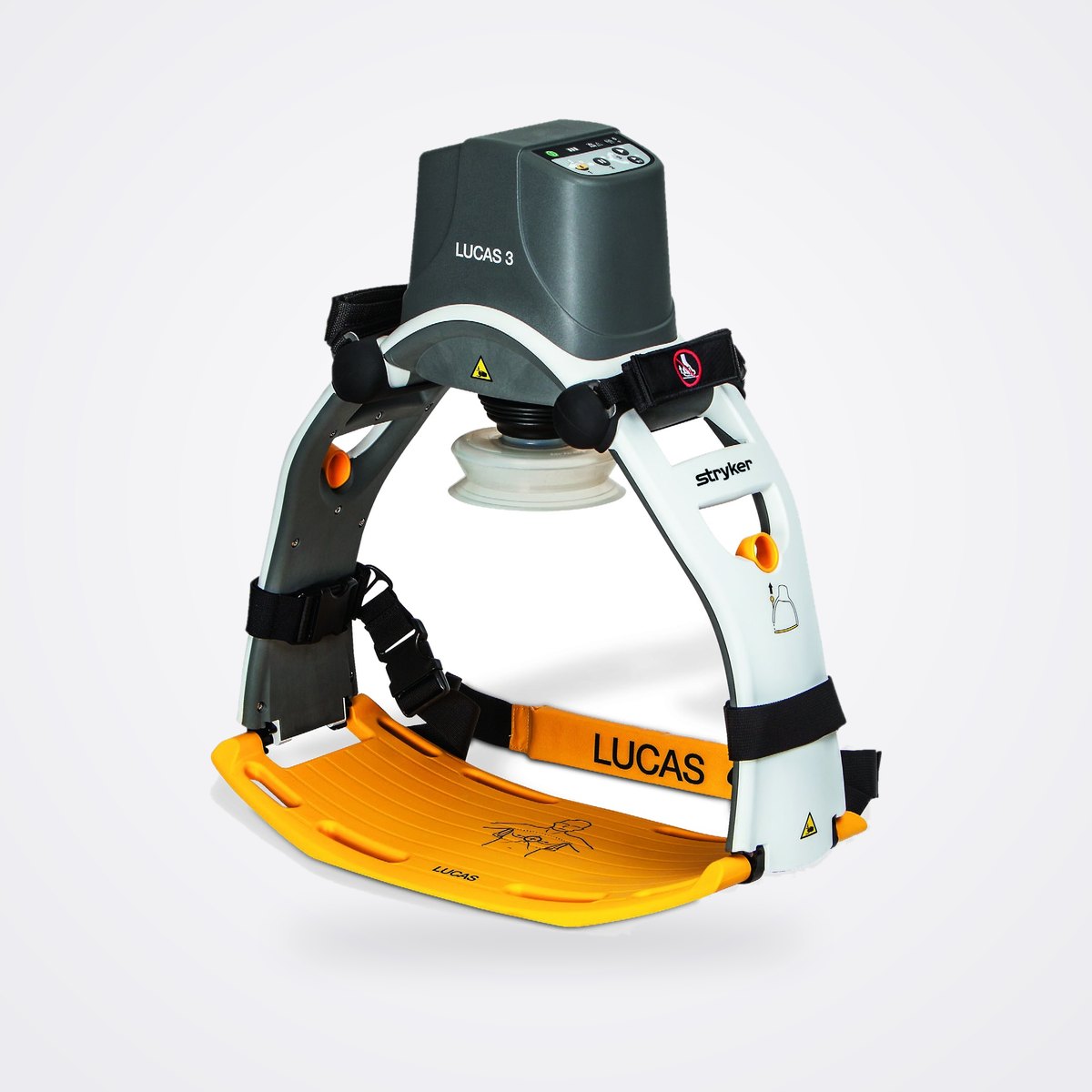

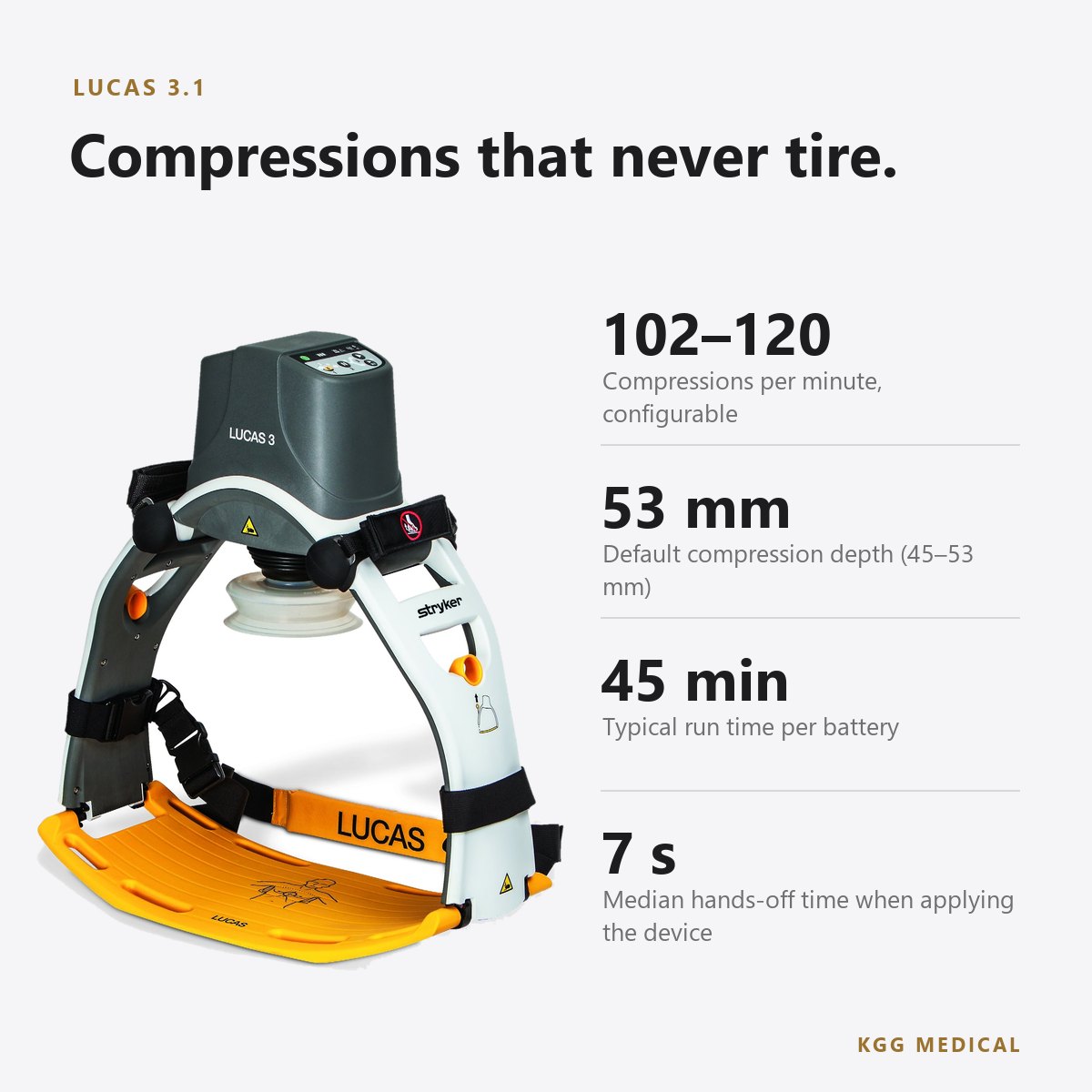

LUCAS 3.1 delivers continuous chest compressions with a piston and suction cup at a set depth and rate, so rescuers are free for airway, drugs and defibrillation and can stay belted in a moving ambulance. Applying it takes two steps, back plate then upper part, with a median 7-second pause in compressions in clinical use. Rate (102, 111 or 120/min), depth (45–53 mm) and ventilation alerts can be configured, and Wi-Fi links the device to Stryker's LIFENET system for post-event reports and fleet status. The optional radiotranslucent PCI back plate allows CPR to continue in the cath lab.
المواصفات الرئيسية
Why the LUCAS 3.1
High-quality CPR, every time
A piston and suction cup deliver guideline-consistent depth and rate without fatigue, and the soft-start and force control adapt to each chest.
Safer transport
Compressions continue on stairs, in lifts and in a moving ambulance or aircraft, so crews can stay seated and belted.
On in seconds
Back plate first, then the upper part: a median 7-second interruption when switching from manual to mechanical CPR in clinical use.
Set to your protocol
Configure rate, depth, ventilation alerts, pause length and CPR timer through LIFENET, and push one setup to the whole fleet over Wi-Fi.
Into the cath lab
The optional radiotranslucent PCI back plate keeps compressions going during angiography, PCI or ECMO cannulation, reducing staff X-ray exposure.
مجالات الاستخدام
Ambulances and air ambulances, emergency departments, cardiac cath labs and in-hospital resuscitation teams.
محتويات العبوة
LUCAS 3.1 device with a rechargeable battery and back plate, supplied in a hard-shell carrying case (Stryker states a carrying case is included with every device). Suction cups, patient and stabilisation straps, PCI back plate, spare batteries, external charger and car power cable are confirmed per order. Pack sizes and configurations are confirmed with the quotation.
الاعتمادات والامتثال
FDA 510(k) cleared, K173553 (8 Feb 2018), product code DRM (external cardiac compressor), Class II; earlier LUCAS 3 K161768 · CE marked, Class IIb, notified body 2460 (Stryker EMEA brochure and Europe/MEA data sheet). Supplied subject to registration in each destination country (MOHAP, DoH, DHA, SFDA or the equivalent authority). Certificates, declarations of conformity, IFUs and registration documents are provided with every quotation. Specifications are indicative and subject to manufacturer change.
إذا كان للمنتج وكيل رسمي أو موزّع معتمد في الدولة فإننا نوفّره عن طريقه، أو مباشرةً من المصنِّع عند الحاجة. أسماء المنتجات وعلاماتها التجارية وصورها ملك لأصحابها.
أسئلة شائعة
Is the LUCAS 3.1 available in the UAE and the GCC?
KGG sources the LUCAS 3.1 on request for ambulance services and hospitals in the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain and Oman. It is supplied subject to registration in each destination country, and availability is confirmed with each quotation.
كيف أحصل على السعر؟
Add the LUCAS 3.1 to your quote list or use Request a quote. We reply with pricing, lead time and the documents for your country, and can quote spare batteries, suction cups and the PCI back plate with it.
What changed from LUCAS 3 to version 3.1?
Version 3.1 adds Wi-Fi connection to the LIFENET System, configurable rate (102, 111 or 120), depth and ventilation alerts, and post-event reports by email. With factory settings it compresses exactly as LUCAS 3, v3.0.
Which patients can it treat?
Adults in cardiac arrest whose chest fits the device: chest height 17.0–30.3 cm and width up to 44.9 cm. Stryker states no patient weight limit. It is not intended for children.
كم تدوم البطارية؟
Typically 45 minutes on one battery. Swap in a charged spare or connect mains or the 12–28 V vehicle cable for longer resuscitations.
Will it cope with Gulf heat?
Stryker rates operation from 0 to 40 °C and battery storage up to 40 °C (up to 70 °C for less than a month). Charge and store batteries in an air-conditioned space, not a parked vehicle in the sun.
اطلب عرض سعر
Get pricing for the LUCAS 3.1.
اذكر لنا الكمية ومدينة التسليم، وهل الطلب لمنشأة أم لفريق أم لمريض، ونوافيك بالسعر ومدة التوريد والوثائق التنظيمية المطلوبة في بلدك.
