Mindray
Intensive care, on the move.

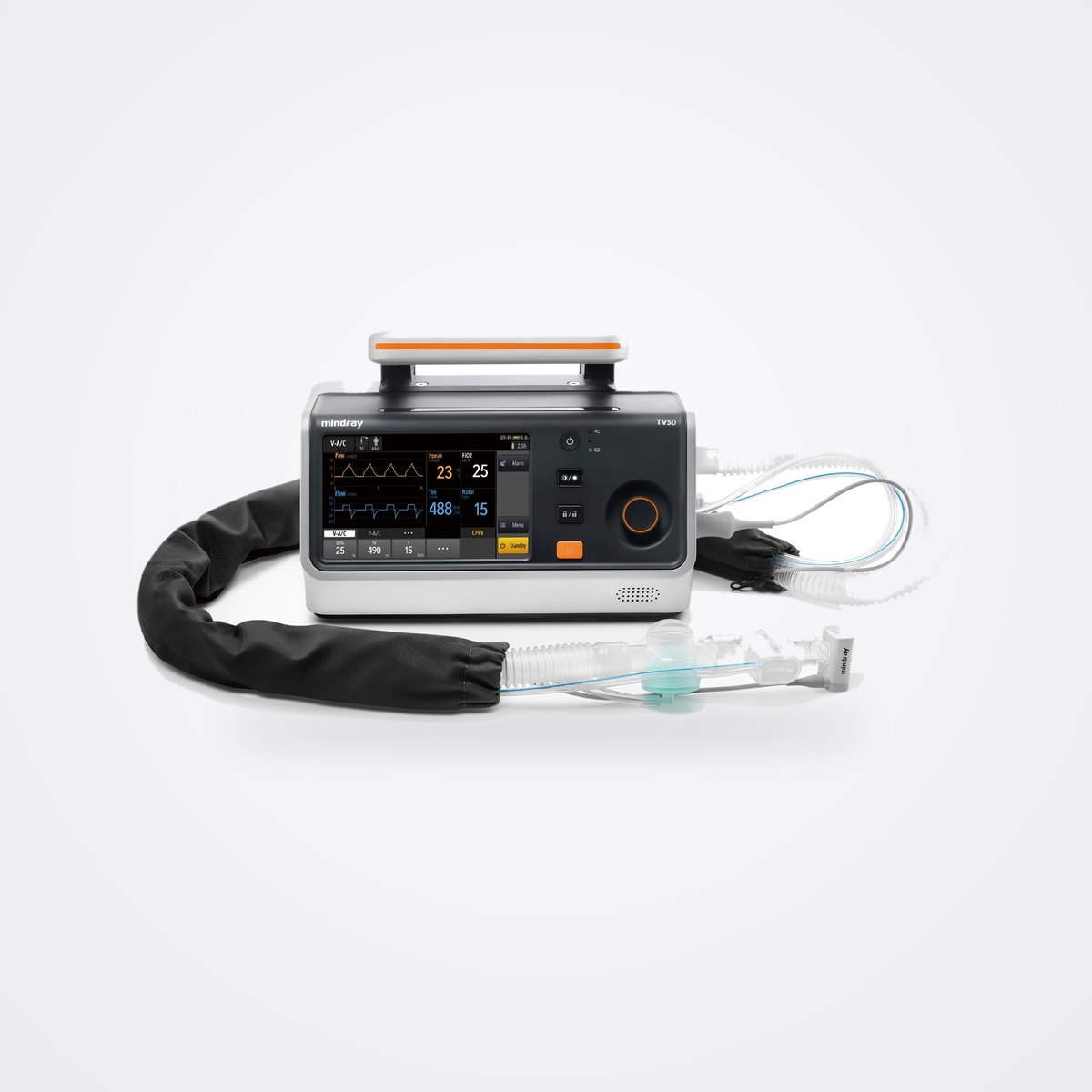

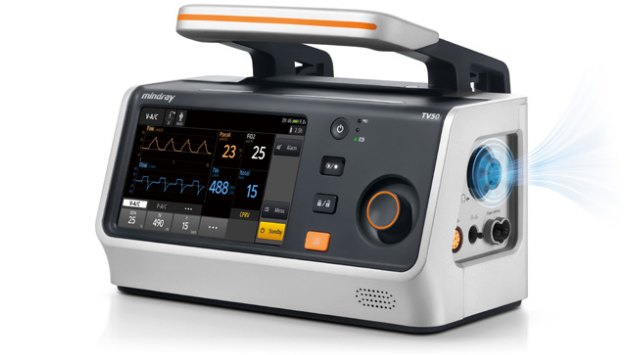

The TV50 carries ICU-style ventilation into ambulances, aircraft and in-hospital transfers. Its built-in turbine delivers peak flows of at least 210 L/min, so it runs without a compressed-air supply and supports non-invasive ventilation, while oxygen is set from 21 to 100%. The 7-inch touchscreen mirrors Mindray's bedside ventilators, and the mode set includes AMV adaptive ventilation and a one-touch CPRV mode for resuscitation. Hot-swappable batteries give up to 10 hours with two batteries, and the unit is tested to EN 1789, EN 13718-1 and RTCA DO-160G.
المواصفات الرئيسية
Why the Mindray TV50
No air supply needed
A built-in turbine with at least 210 L/min peak flow drives invasive and non-invasive ventilation from oxygen alone, with FiO₂ set from 21 to 100%.
Bedside modes in transit
The same modes as Mindray's ICU ventilators, including APRV, PRVC and AMV adaptive minute ventilation, so therapy continues unchanged during transfer.
CPRV at one touch
A dedicated CPR ventilation mode recalls preconfigured settings for resuscitation, and mainstream EtCO₂ helps confirm airway position.
Power and oxygen planning
Hot-swappable batteries run up to 10 hours with two batteries, and the screen shows remaining battery and real-time oxygen consumption.
Tested for the road and air
Meets EN 1789 and EN 13718-1, RTCA DO-160G for aircraft, with IP34 protection and a 75 cm drop test.
مجالات الاستخدام
Intensive care and in-hospital transfers, road ambulances, and helicopter and fixed-wing air ambulances, by trained clinical staff.
محتويات العبوة
TV50 ventilator. Batteries, patient circuits, O₂ hoses, mainstream CO₂ module, mounting handle, fixed base, trolley or cylinder carrier are configured per order. Pack sizes and configurations are confirmed with the quotation.
الاعتمادات والامتثال
CE marked, notified body TÜV SÜD Product Service (CE 0123), per the TV50 Operator's Manual (May 2023); Class IIb per Mindray's EU datasheet; Mindray's MDR QMS certificate G10 044751 0176 Rev. 06 covers its Class IIb ventilators. Supplied subject to registration in each destination country (MOHAP, DoH, DHA, SFDA or the equivalent authority). Certificates, declarations of conformity, IFUs and registration documents are provided with every quotation. Specifications are indicative and subject to manufacturer change.
إذا كان للمنتج وكيل رسمي أو موزّع معتمد في الدولة فإننا نوفّره عن طريقه، أو مباشرةً من المصنِّع عند الحاجة. أسماء المنتجات وعلاماتها التجارية وصورها ملك لأصحابها.
أسئلة شائعة
Is the Mindray TV50 available in the UAE and the GCC?
KGG sources the TV50 on request for hospitals and ambulance services in the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain and Oman. It is supplied subject to registration in each destination country, and availability is confirmed with each quotation.
كيف أحصل على السعر؟
Add the TV50 to your quote list or use Request a quote. We reply with pricing, lead time and the documents for your country, and can quote batteries, circuits, the CO₂ module and a trolley or base with it.
Does it need compressed air?
No. The integrated turbine generates the flow, so the TV50 only needs an oxygen source (high- or low-pressure) when FiO₂ above 21% is required.
TV50 or TV80?
The TV50 is Mindray's compact 4.5 kg transport ventilator. The TV80 is the larger model in the same series; ask us for a side-by-side comparison for your fleet.
Which patients can it ventilate?
Adult, paediatric and infant patients, with tidal volumes from 20 mL up to 4,000 mL depending on patient type, invasively or non-invasively.
Will it cope with Gulf heat?
Mindray rates the TV50 for operation from −20 to 50 °C and storage up to 60 °C, with 5–95% humidity. Avoid leaving it in direct sun in a parked vehicle.
اطلب عرض سعر
Get pricing for the Mindray TV50.
اذكر لنا الكمية ومدينة التسليم، وهل الطلب لمنشأة أم لفريق أم لمريض، ونوافيك بالسعر ومدة التوريد والوثائق التنظيمية المطلوبة في بلدك.
